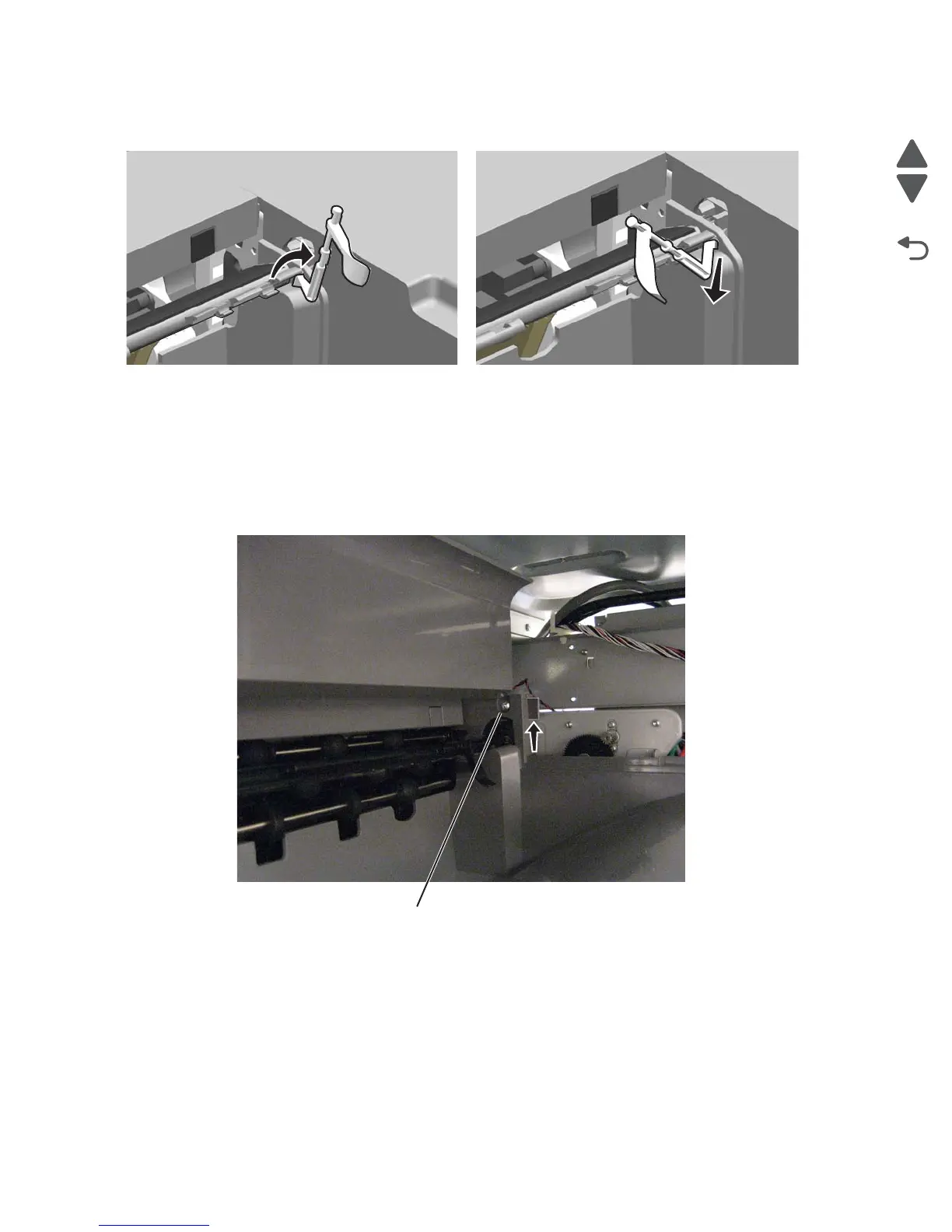

2. Rotate the flag, and pull to remove it.
Bin-full sensor removal
See “Bin-full sensor removal” on page 4-34 for the part number.
1. Remove the AIO rear scanner cover. See “AIO rear scanner cover removal” on page 4-211.
2. Remove the bin-full flag. See “Bin-full flag removal” on page 4-33.
3. Remove the screw (A), and pull up to remove the plate holding the sensor.
A
