Lexmark X792 - HTU Rear Redrive Cover Removal

To Next Page

To Previous Page

4-392 Service Manual

7562

Go Back

HTU rear redrive cover removal

1. Remove all output options from the printer.

2. Remove the access door. See “HTU access door removal” on page 4-361.

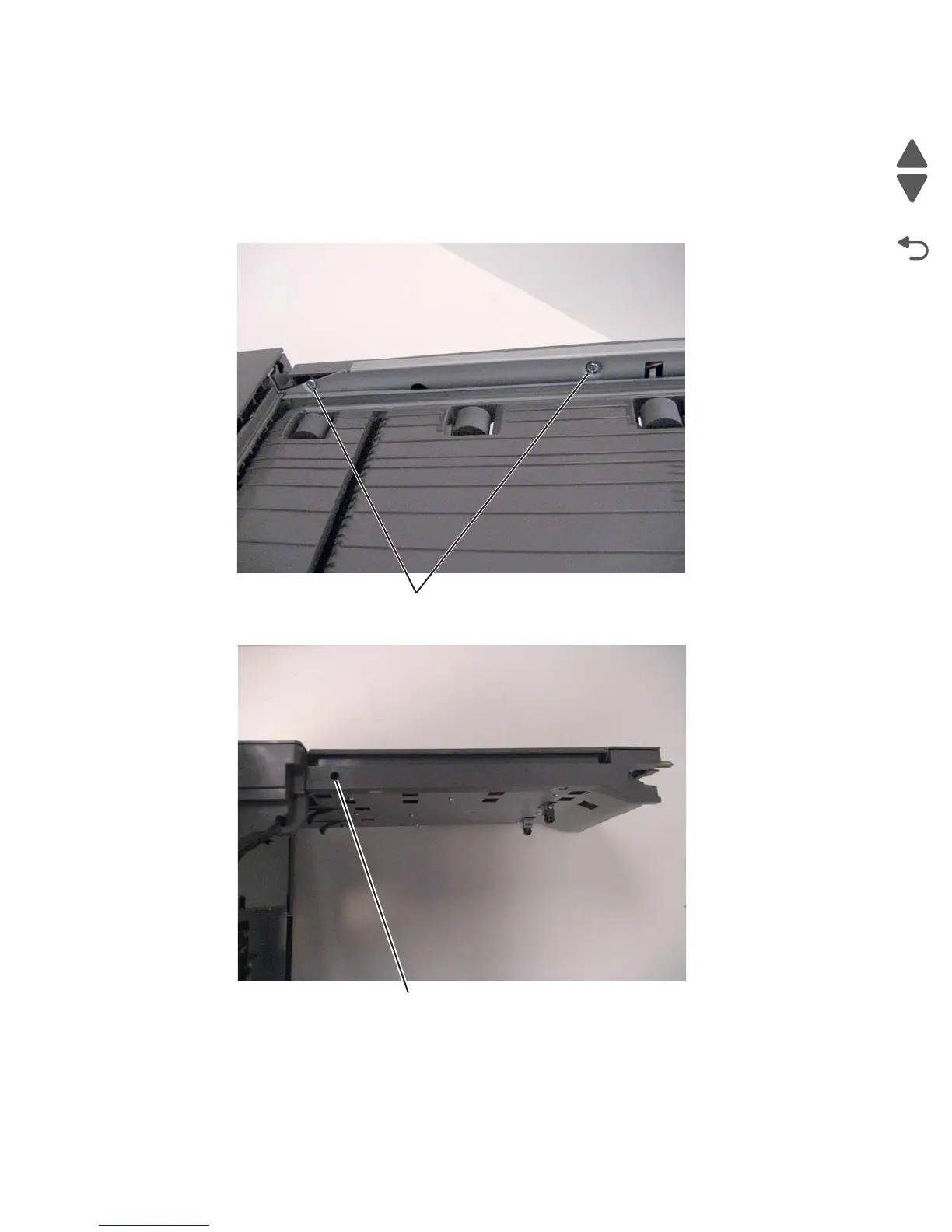

3. Remove the two screws (A) from the inside.

4. Remove the screw (B) from the rear.

A (3015189)

B (3014523)
