Left cover removal
AND
Lower left cover removal
See “Left and rear covers” on page 7-5 for the part numbers.
1. Remove the scanner left side rear cover. See “Scanner left side rear cover removal” on page 4-214.
2. Remove the rear cover. See “Rear cover removal” on page 4-23.

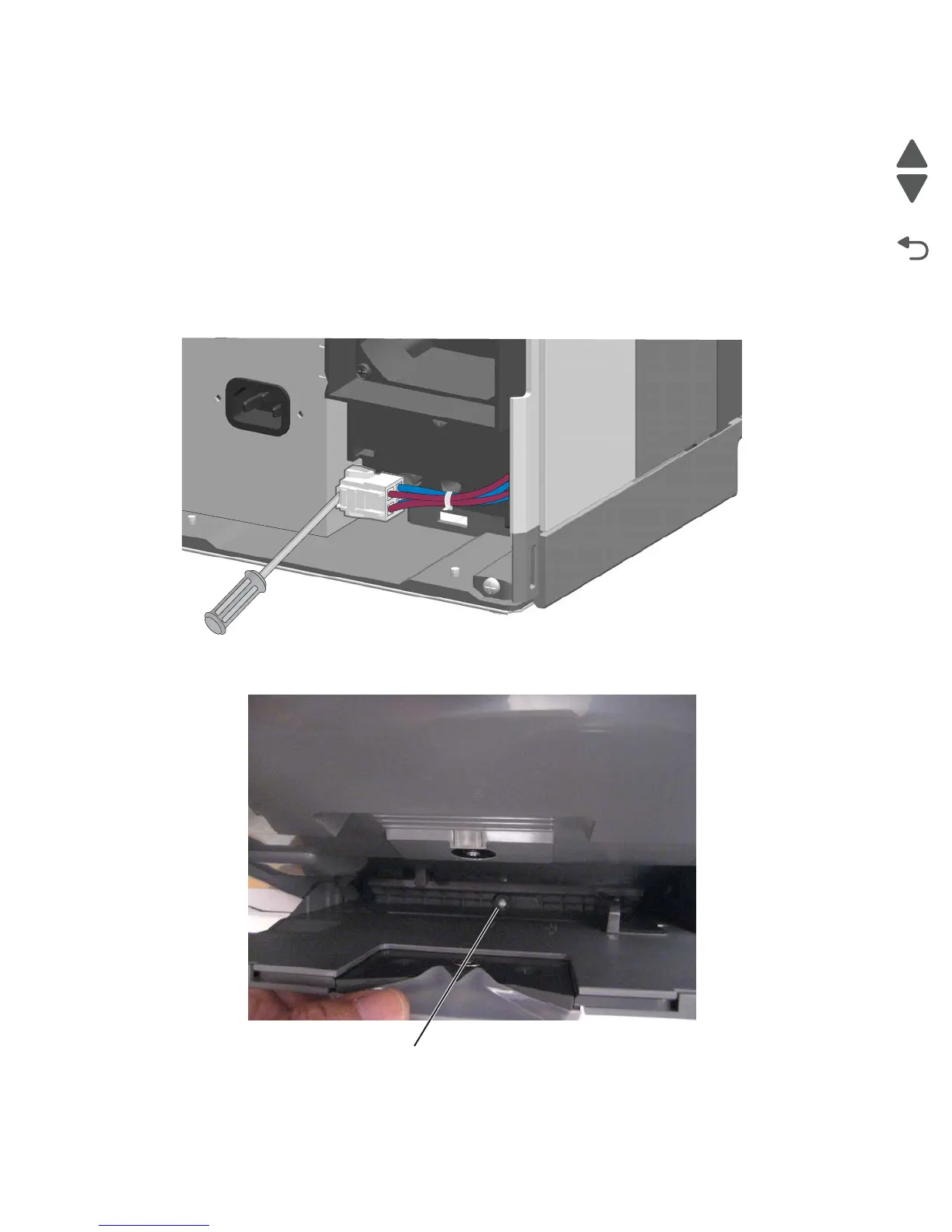

3. Use a flat-blade screwdriver to disconnect the cable from the low-voltage power supply.
4. Open the MPF door enough to remove the screw (A) from the lower left cover under it.
A
