Lexmark X792 - Multipurpose Feeder (MPF) Cover Removal

To Next Page

To Previous Page

Repair information 4-21

7562

Go Back

Multipurpose feeder (MPF) cover removal

See “Left and rear covers” on page 7-5 for the part number.

1. Remove the left access door assembly. See “Left access door assembly removal” on page 4-10.

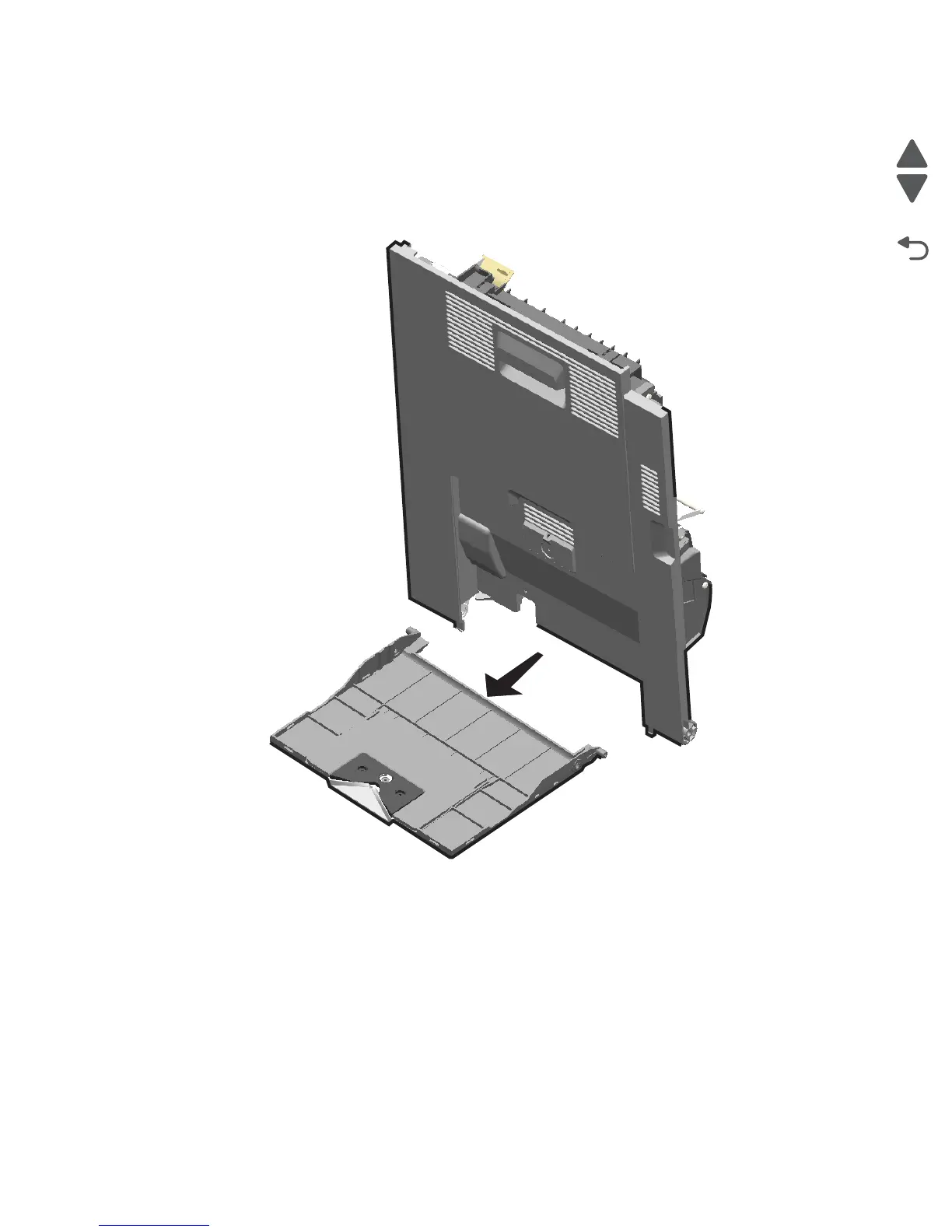

2. Separate the MPF from the left access door assembly.
