Lexmark X792 - MPF Paper Pick Assembly Removal (Including the MPF Ratchet Collar and MPF Drive Pulley)

To Next Page

To Previous Page

4-98 Service Manual

7562

Go Back

MPF paper pick assembly removal (including the MPF ratchet collar and MPF drive

pulley)

See “Left and rear covers” on page 7-5 for the part numbers.

1. Remove the left cover. See “Left cover removal” on page 4-16.

2. Remove the waste toner left cover. See “Waste toner left cover removal” on page 4-31.

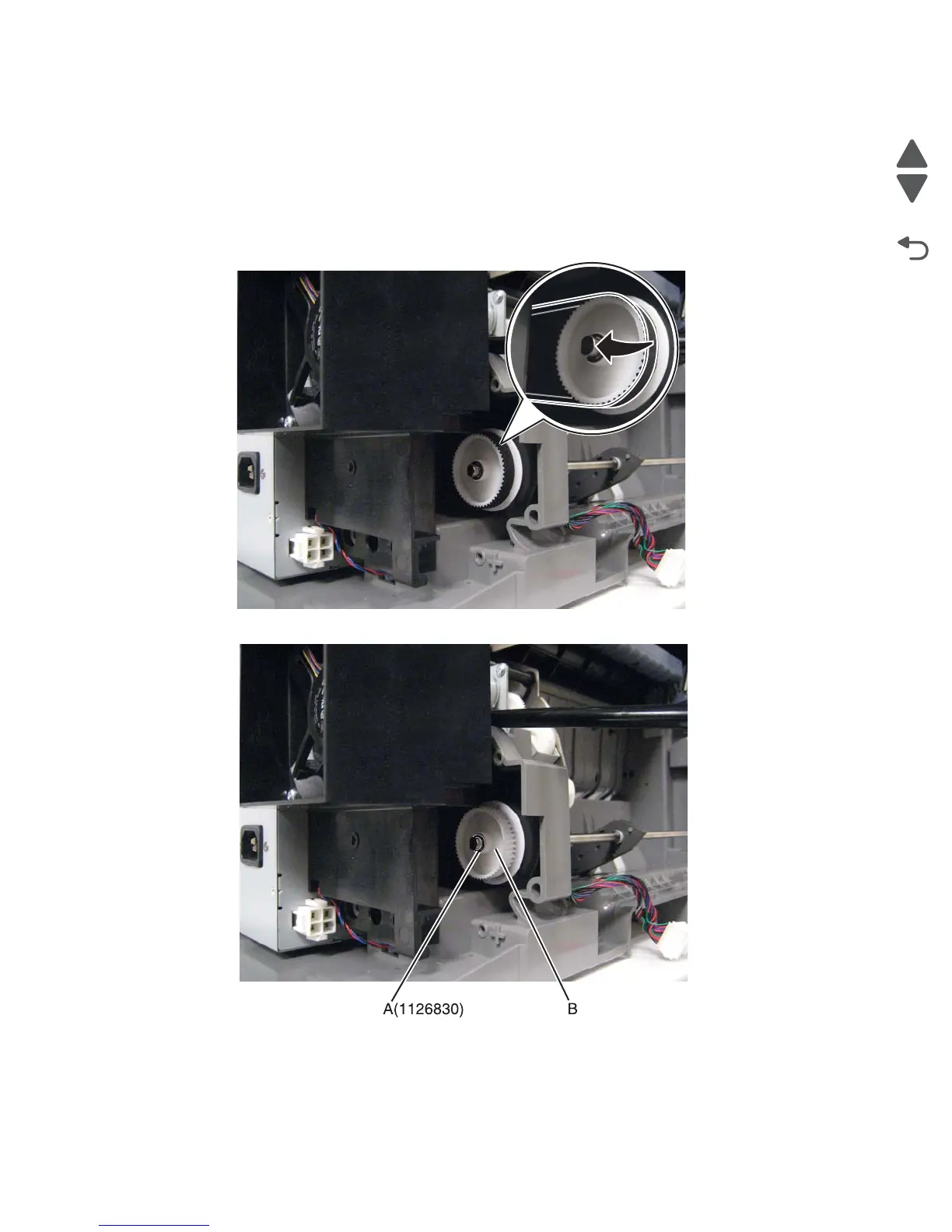

3. Carefully pull the MPF drive belt from the MPF drive pulley.

4. Remove the E-clip (A), and then remove the pulley (B).
