4-374 Service Manual

7562

Go Back

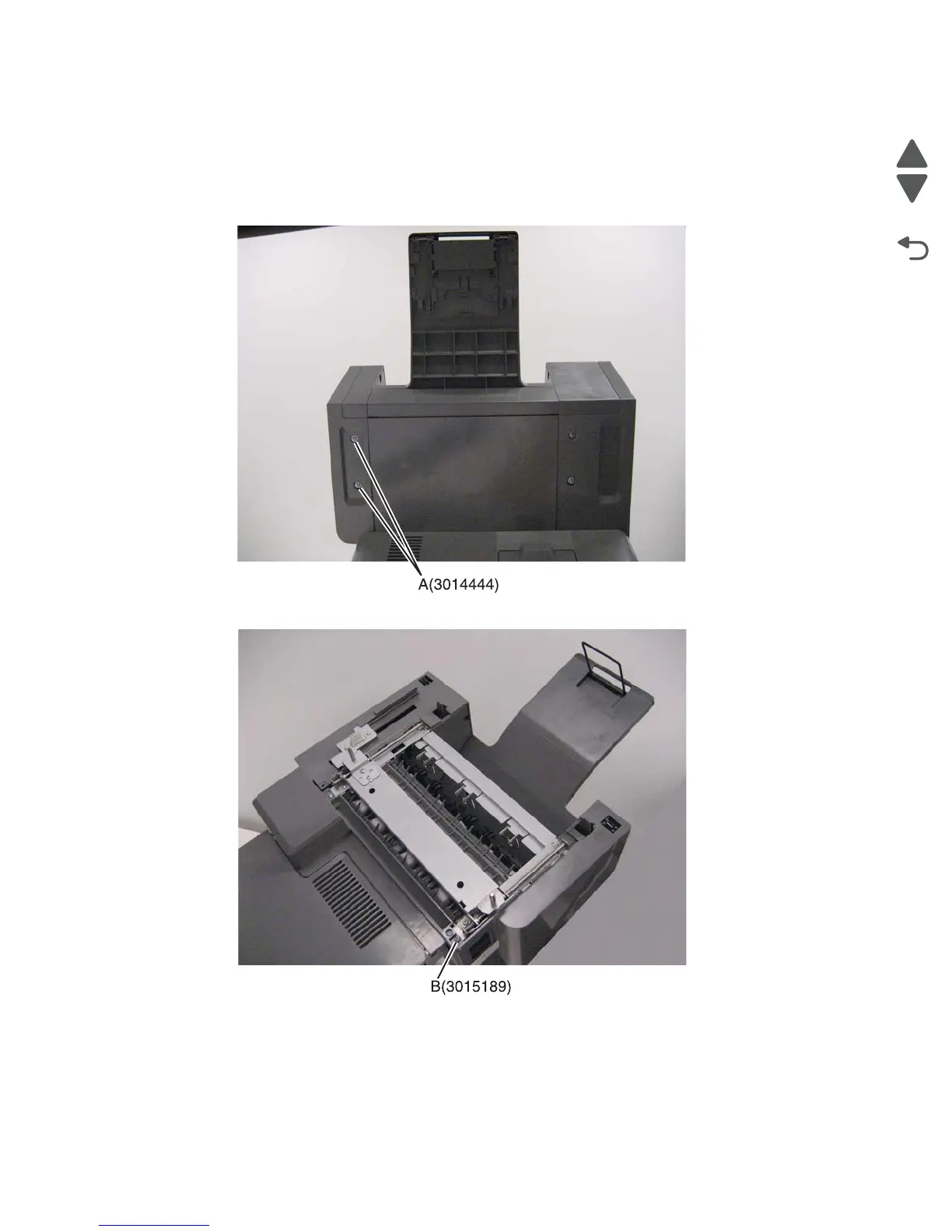

HTU front standard bin cover removal

1. Remove all output options from the printer.

2. Remove two screws (A) from the bottom.

3. Remove the screw (B) from the top.
