Lexmark X792 - ADF Transport Drive Gears (Rear) and Pulley Removal

To Next Page

To Previous Page

Repair information 4-199

7562

Go Back

ADF transport drive gears (rear) and pulley removal

See “ADF feed and drive” on page 7-25 for the part number.

1. Remove the ADF feed drive motor assembly. See “ADF feed drive motor assembly removal” on

page 4-180.

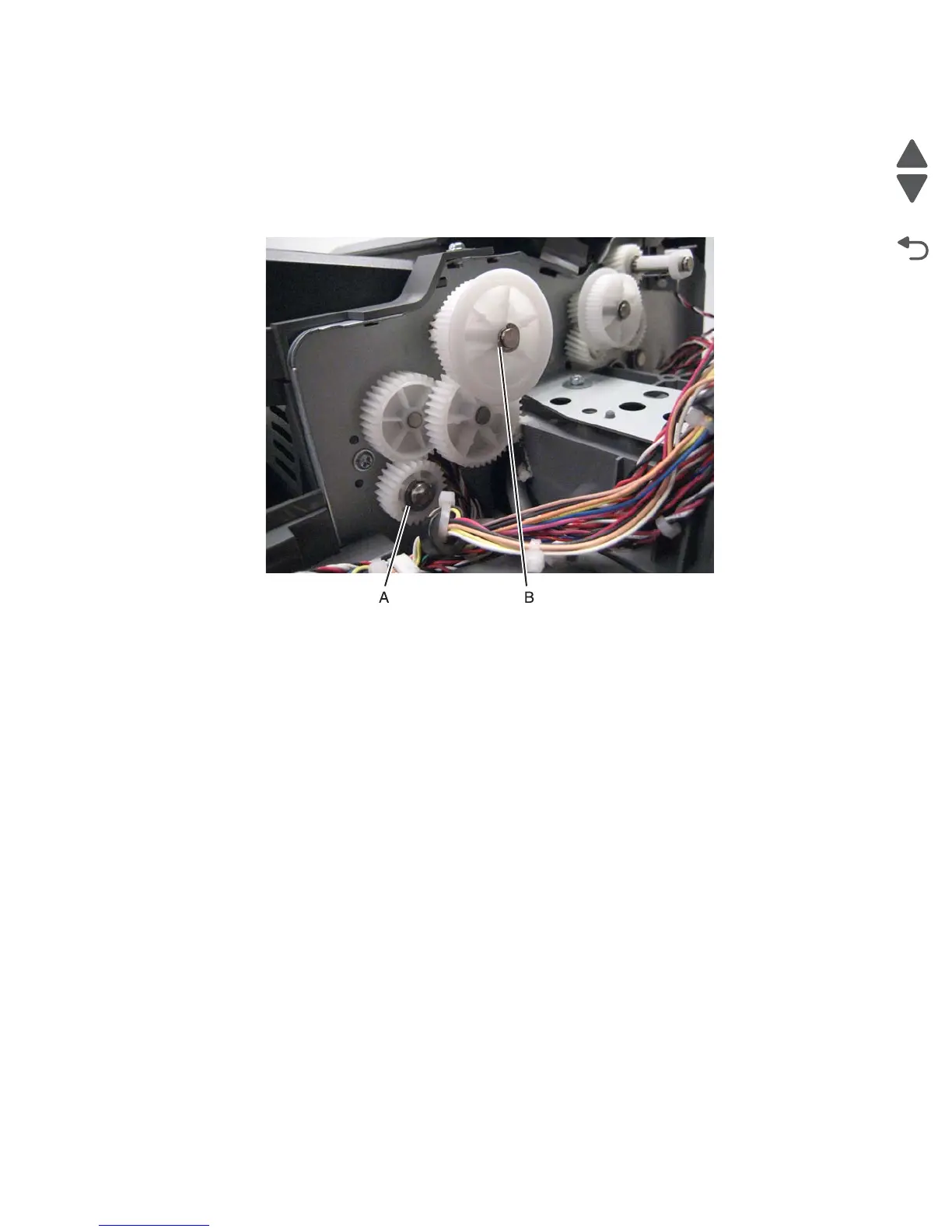

2. Remove the E-clips (A) and (B).

3. Remove the ADF transport gears and pulley.
