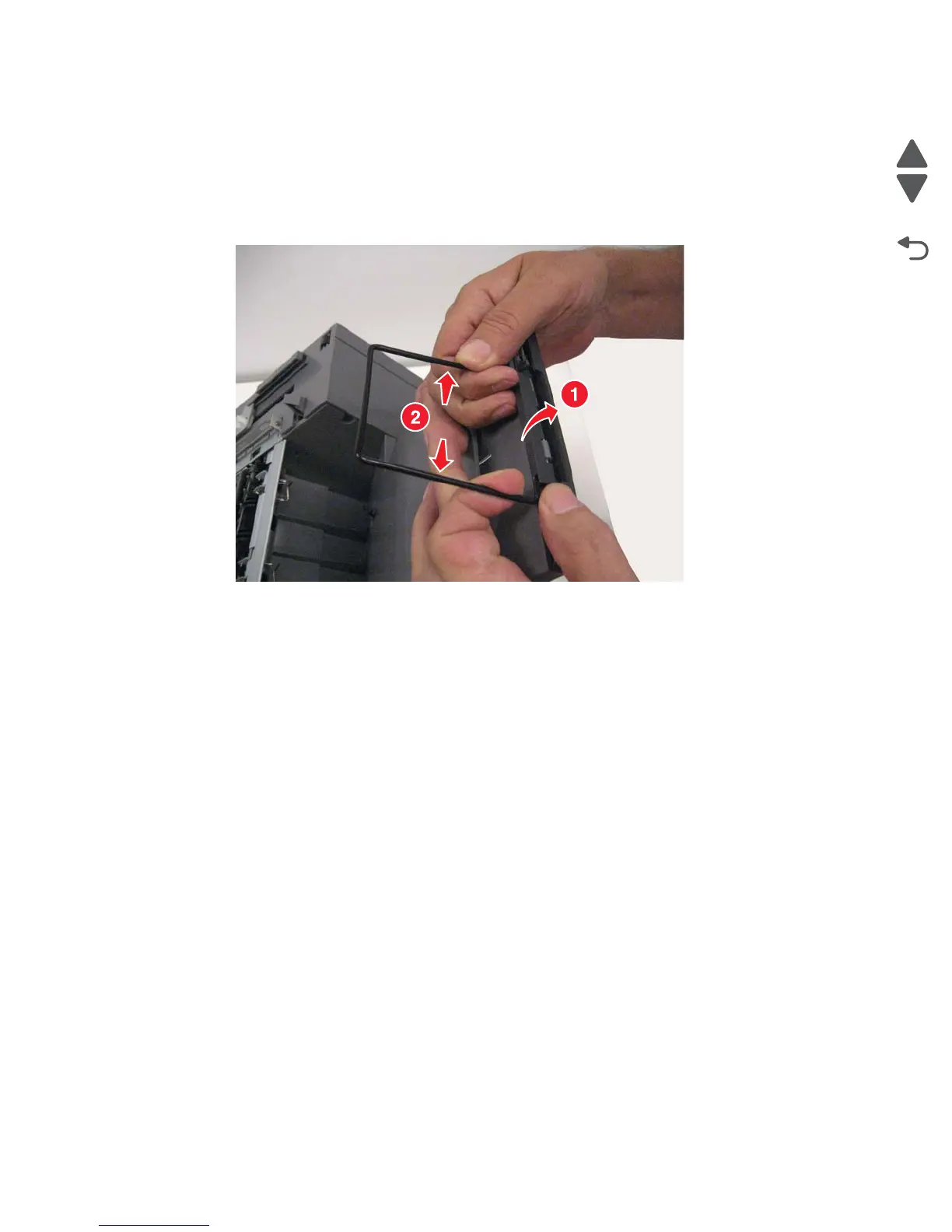

HTU output bin wire stop removal

1. Remove the output option from the HTU.

2. Rotate the extension cover down.

3. Pull out the sides of the stop to remove it.
