Lexmark X792 - HTU output option removal

To Next Page

To Previous Page

Repair information 4-77

7562

Go Back

Left access door piston removal

See “Left” on page 7-11 for the part number.

1. Open the left access door assembly.

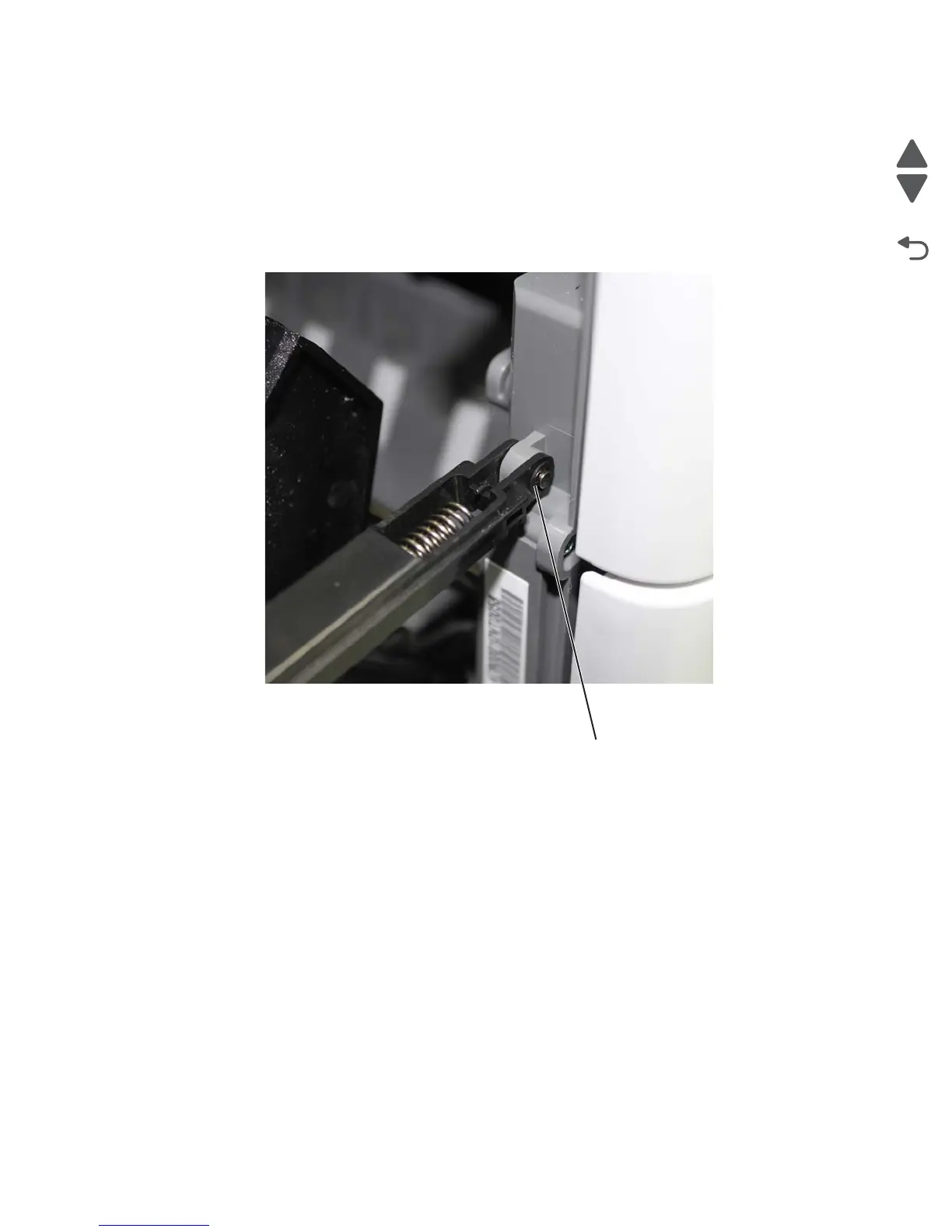

Front piston

Remove the E-clip (G) from the front piston.

G (1126829)
