Lexmark X792 - Finisher or Stacker Rear Cover Removal

To Next Page

To Previous Page

4-346 Service Manual

7562

Go Back

Finisher or stacker rear cover removal

See “Finisher /High-capacity output stacker assembly” on page 7-37 for the part number.

1. Remove the option from the printer.

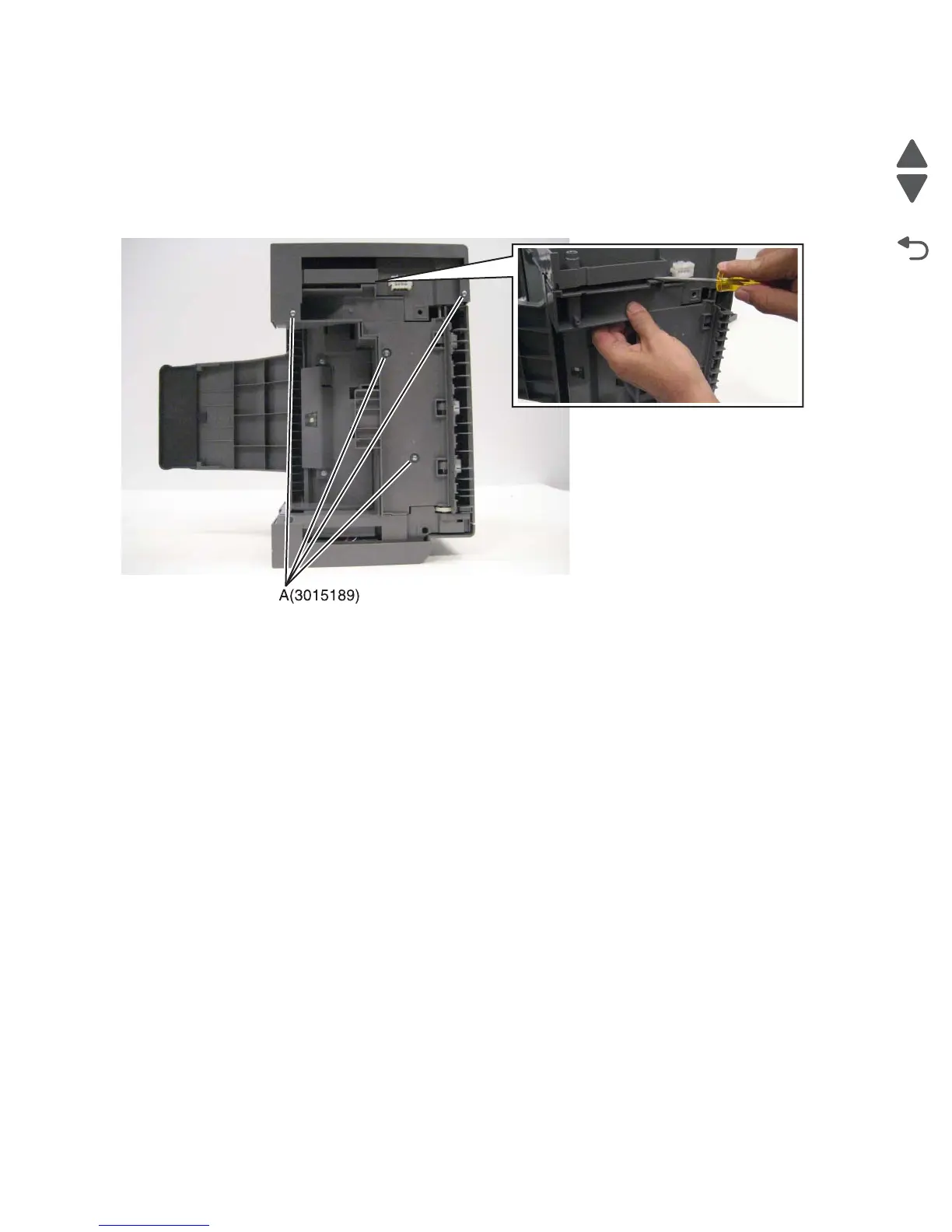

2. Remove the four screws (A) from the bottom of the option.

3. Using a flat-blade screwdriver, pry out the bottom plate, and then remove it.
