Repair information 4-171

7562

Go Back

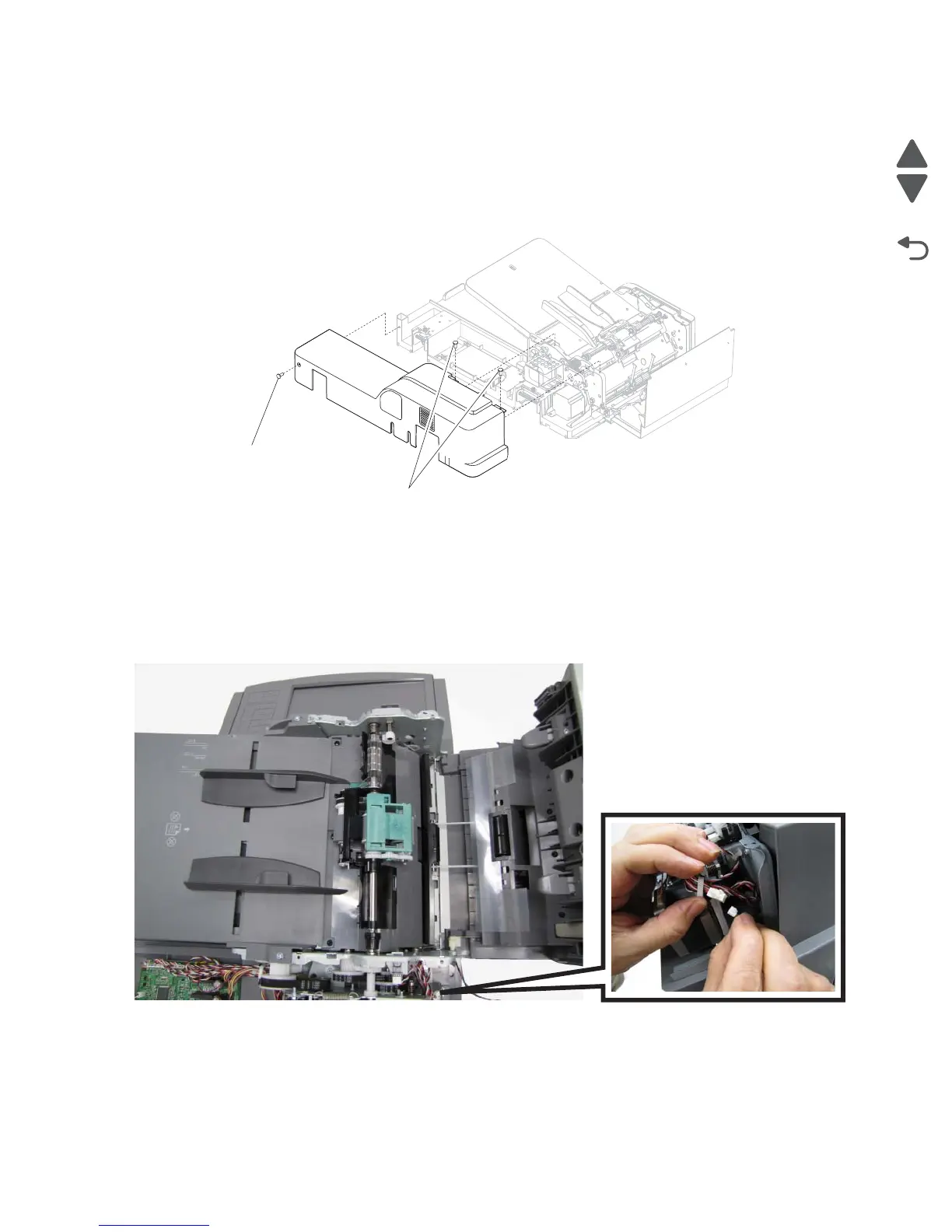

ADF rear cover removal

See “ADF covers” on page 7-23 for the part number.

1. Lift the ADF top door assembly.

2. Remove two screws (A) from the top, and remove one screw (B) from the right side of the ADF rear cover.

3. Lift to remove the ADF rear cover.

ADF top door assembly removal

See “ADF covers” on page 7-23 for the part number.

1. Remove the ADF front cover. See “ADF front cover removal” on page 4-170.

2. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-171.

3. Disconnect the beacon cable.
