HTU sensor (empty bin) removal
1. Remove all output options from the printer.
2. Remove the rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-394.

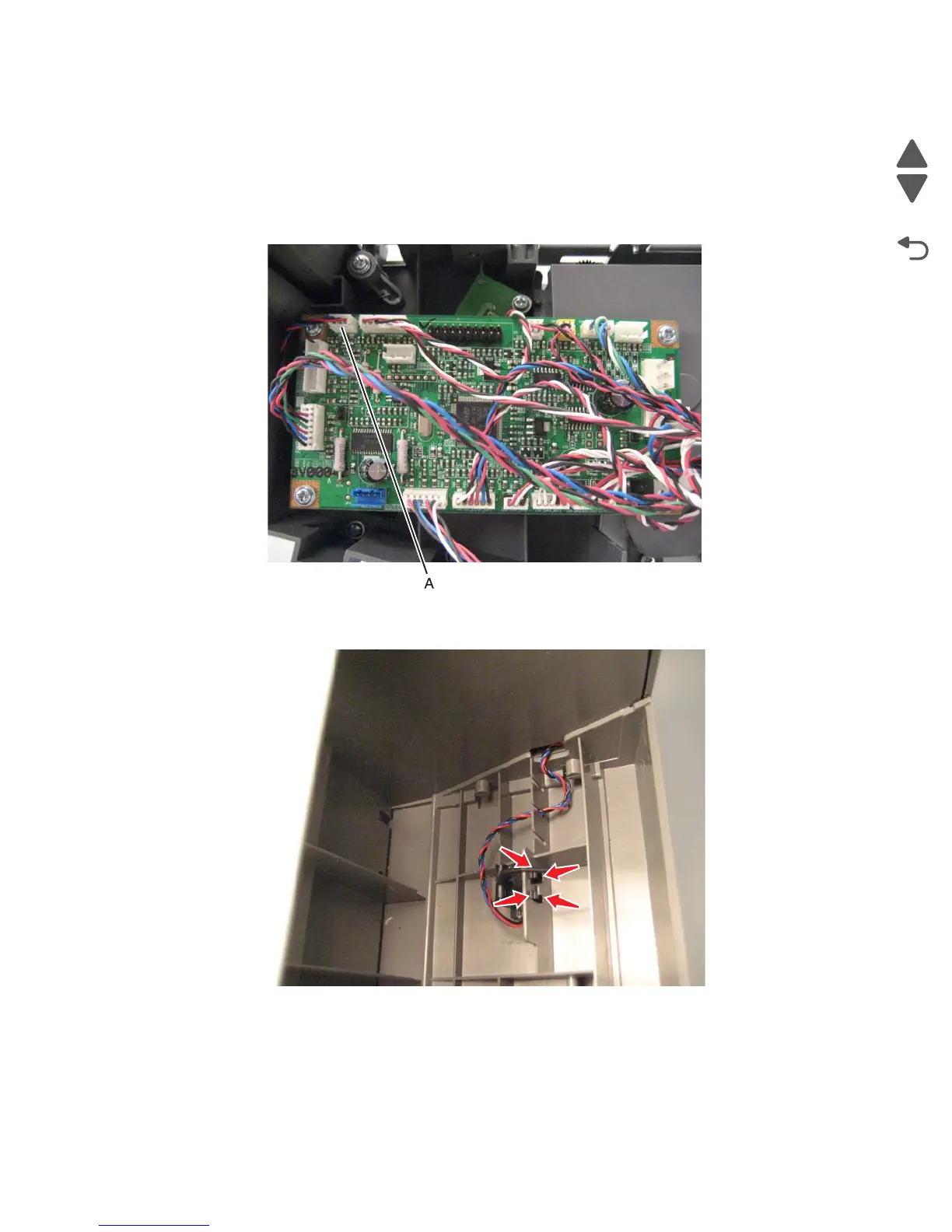

3. Disconnect the sensor cable (A) from the controller card.
4. Remove the output bin. See “HTU output bin removal” on page 4-383.
5. Press tabs to pull out the sensor.
6. Pull the cable through the frame to remove the sensor.
