Lexmark X792 - HTU Card (Bin-Full Receive Card and Lens) Removal

To Next Page

To Previous Page

Repair information 4-367

7562

Go Back

HTU card (bin-full receive card and lens) removal

1. Remove all output options from the printer.

2. Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-374.

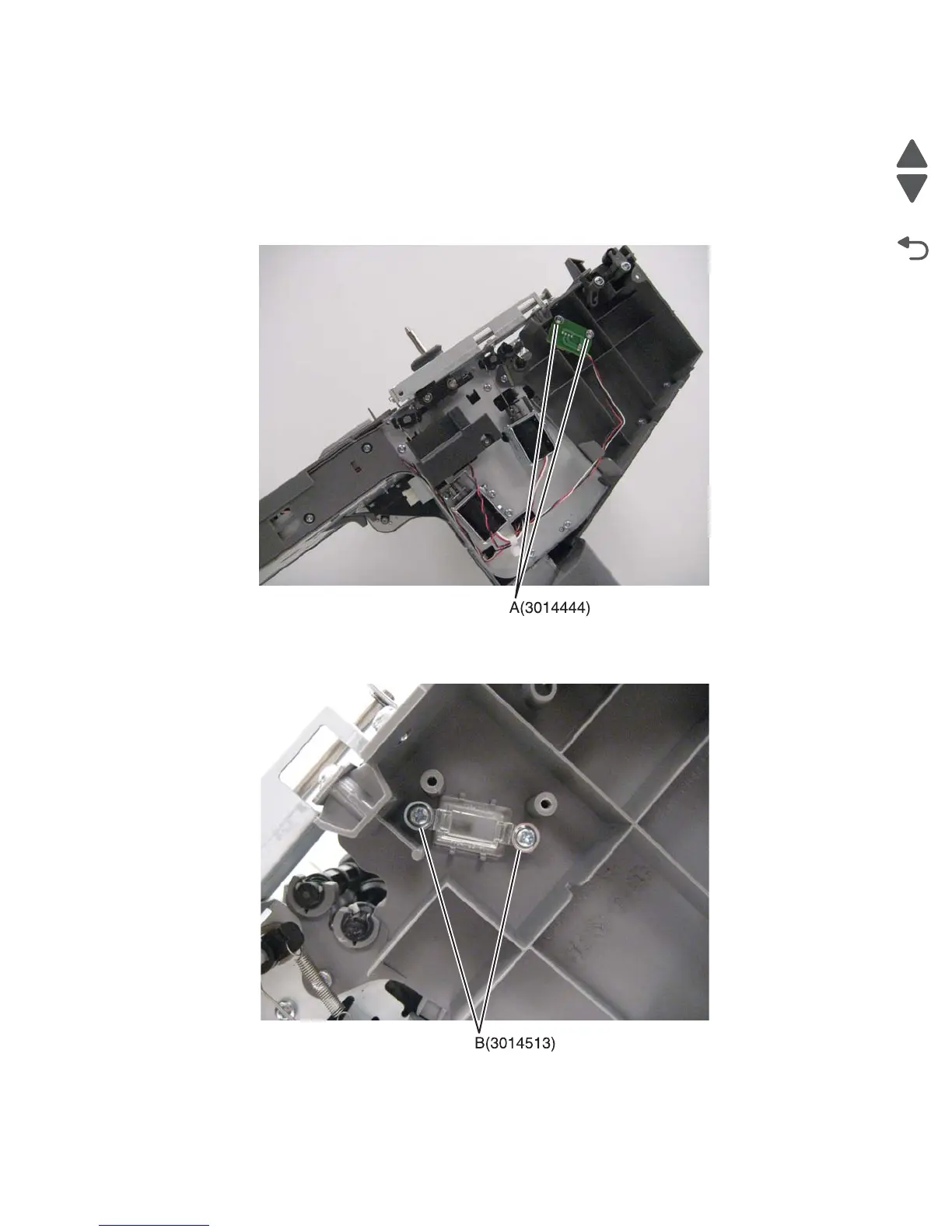

3. Remove the two screws (A), and then remove the sensor card.

4. Disconnect the cable to remove the sensor.

5. If you are replacing the lens, then remove two screws (B) to remove it.
