Main fan removal
See “Rear” on page 7-15 for the part number.

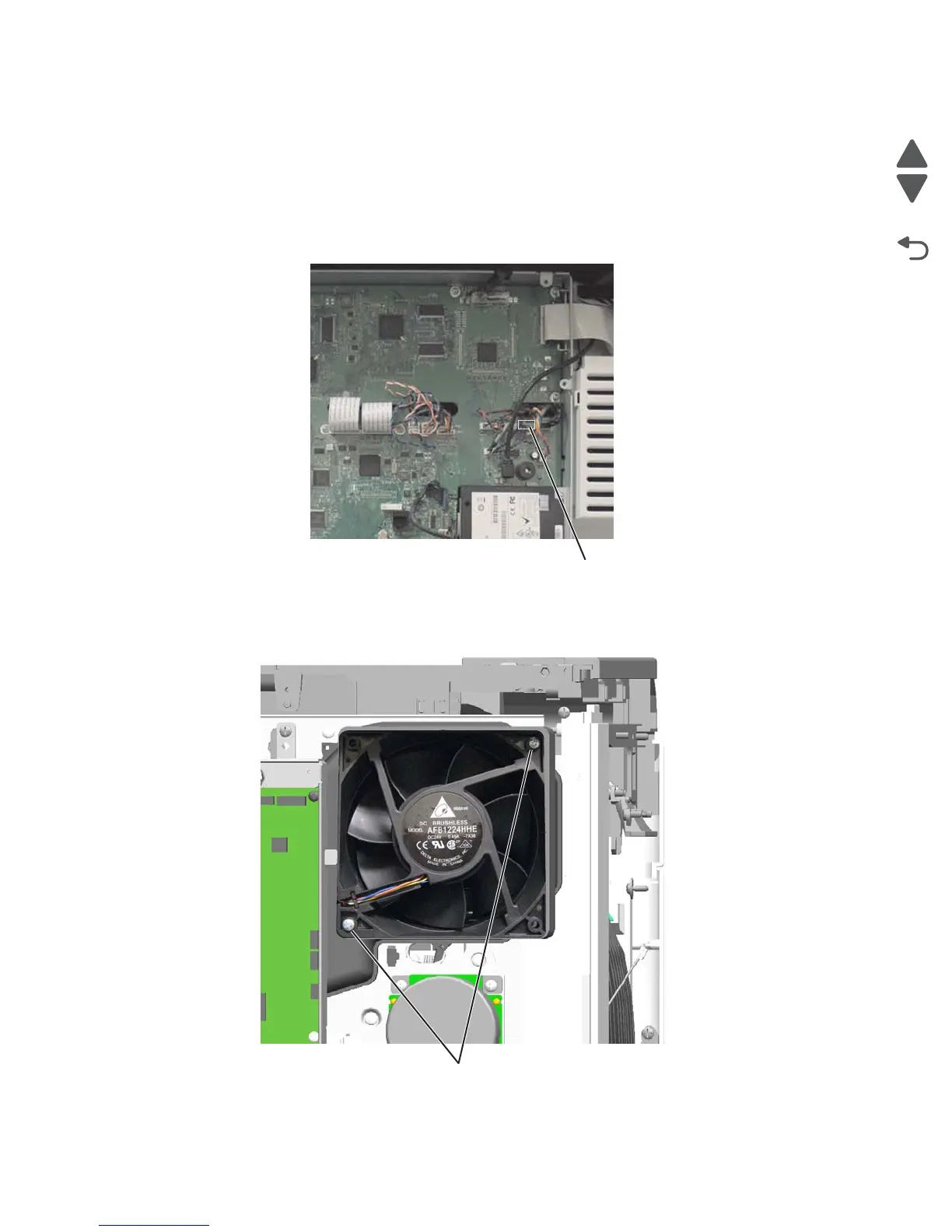

1. Remove the rear cover. See “Rear cover removal” on page 4-23.
2. Disconnect the fan cable (A) from the system board at JM1.
3. Remove the screws (B).
4. Feed the cable through the slot in the system board cage, and remove the fan.
A
B (10B1580)
