4-24 Service Manual

7562

Go Back

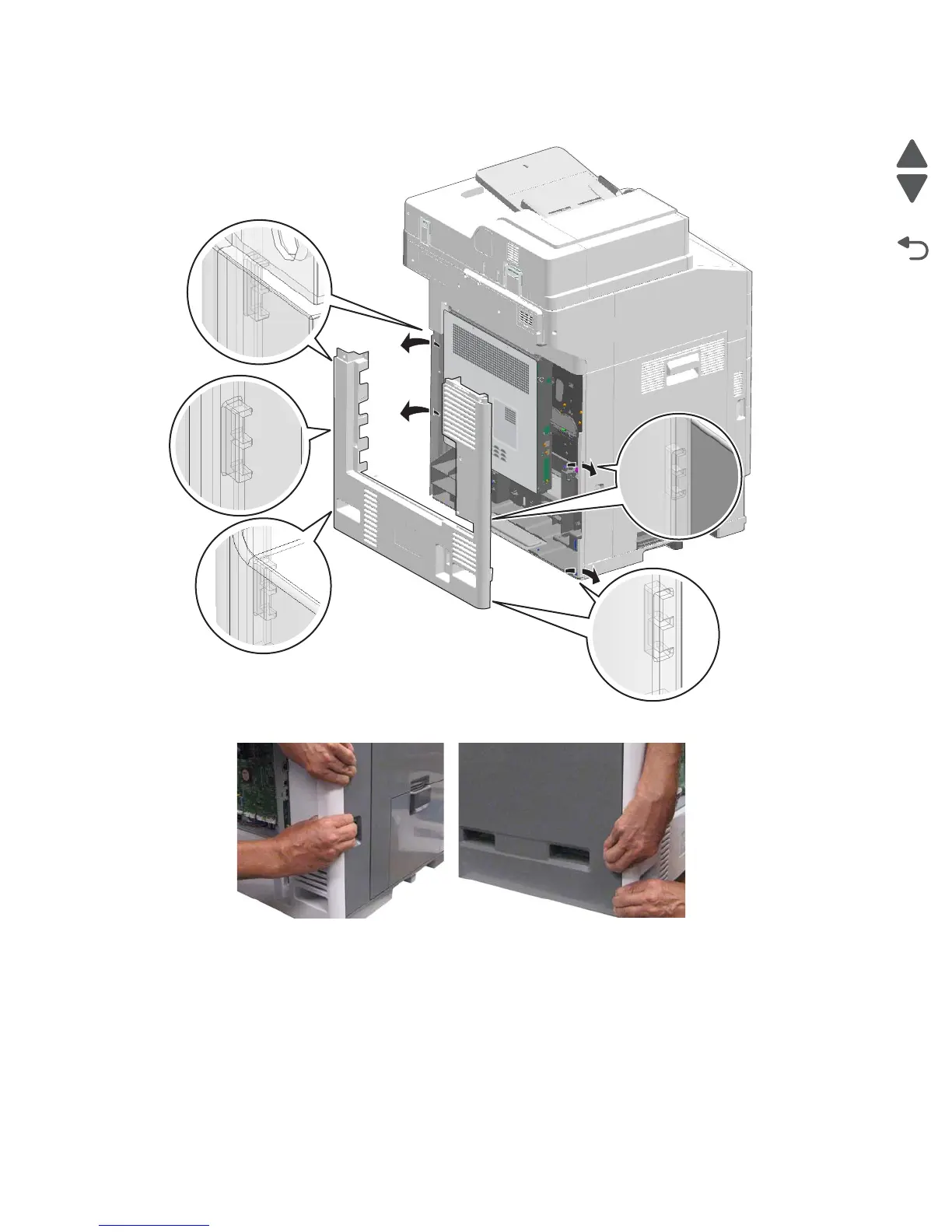

4. Push in the indicated areas of the right side and left side covers, and pull out the rear cover tabs.

Note: On the right cover side, start with the top tab. On the left cover side, start with the bottom tab.

5. Remove the rear cover.
