4-102 Service Manual

7562

Go Back

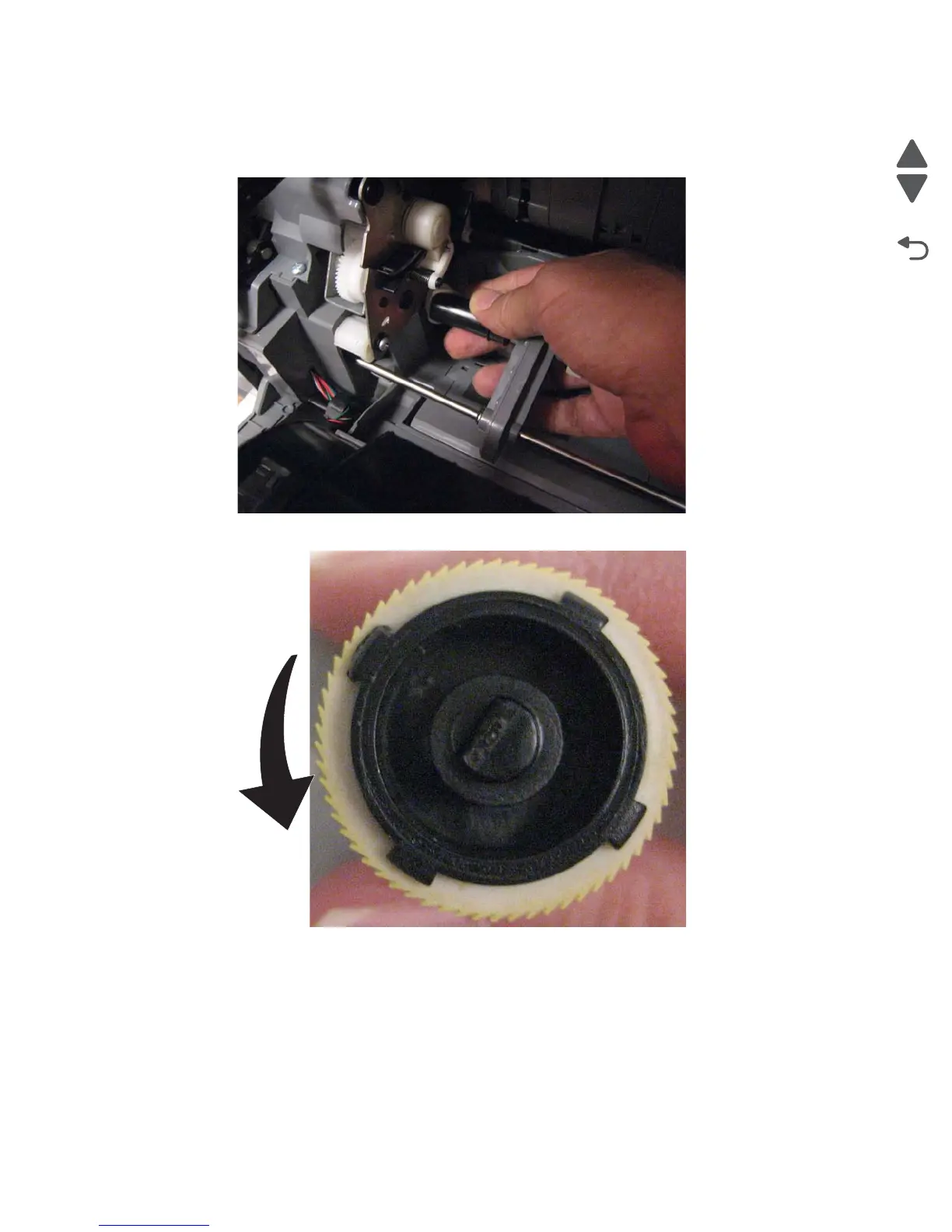

Installation notes:

• Slide the edge of a pick tire between the rear hub extension and the printer frame, and then slide the

roll down to the hub.

• Be sure the flaps on the pick rolls slant away from the direction the rolls turn.
