4-122 Service Manual

7562

Go Back

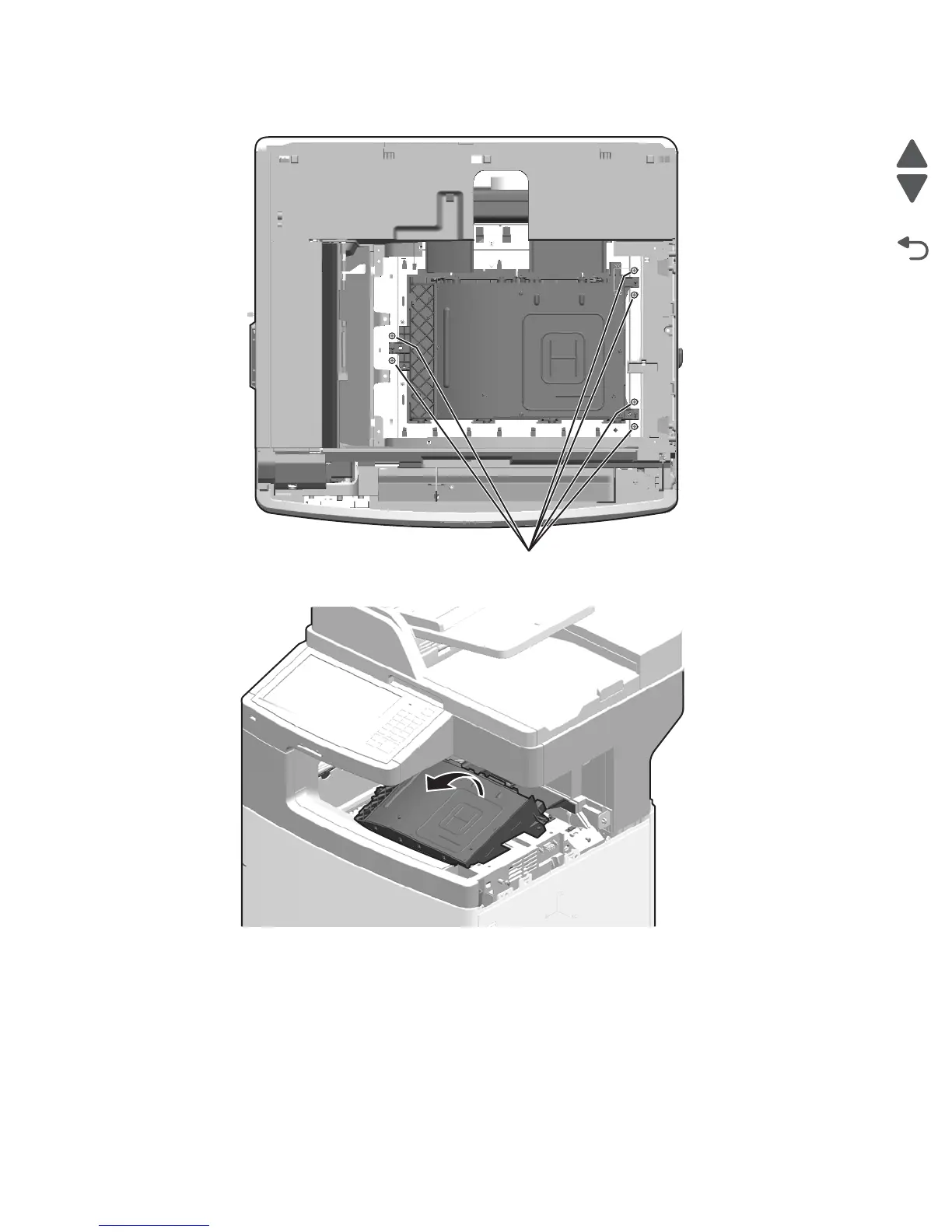

5. Remove six screws (B) from the mounting brackets.

6. Tilt the printhead forward, and lift to remove it.

B (10J3568)
