Repair information 4-267

7562

Go Back

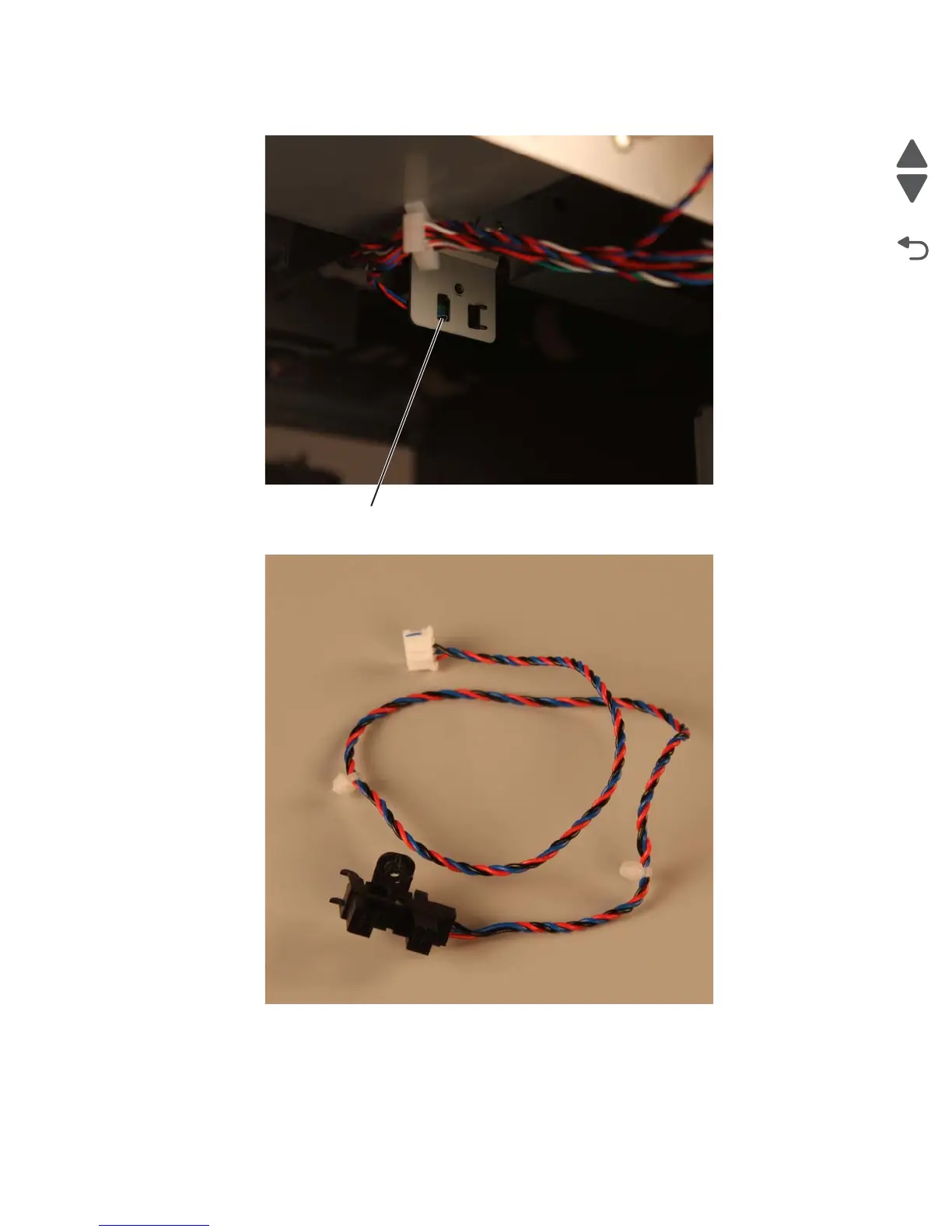

7. Press the latch (D) to remove the elevator home sensor.

8. Remove the elevator home sensor cable.
