Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 220

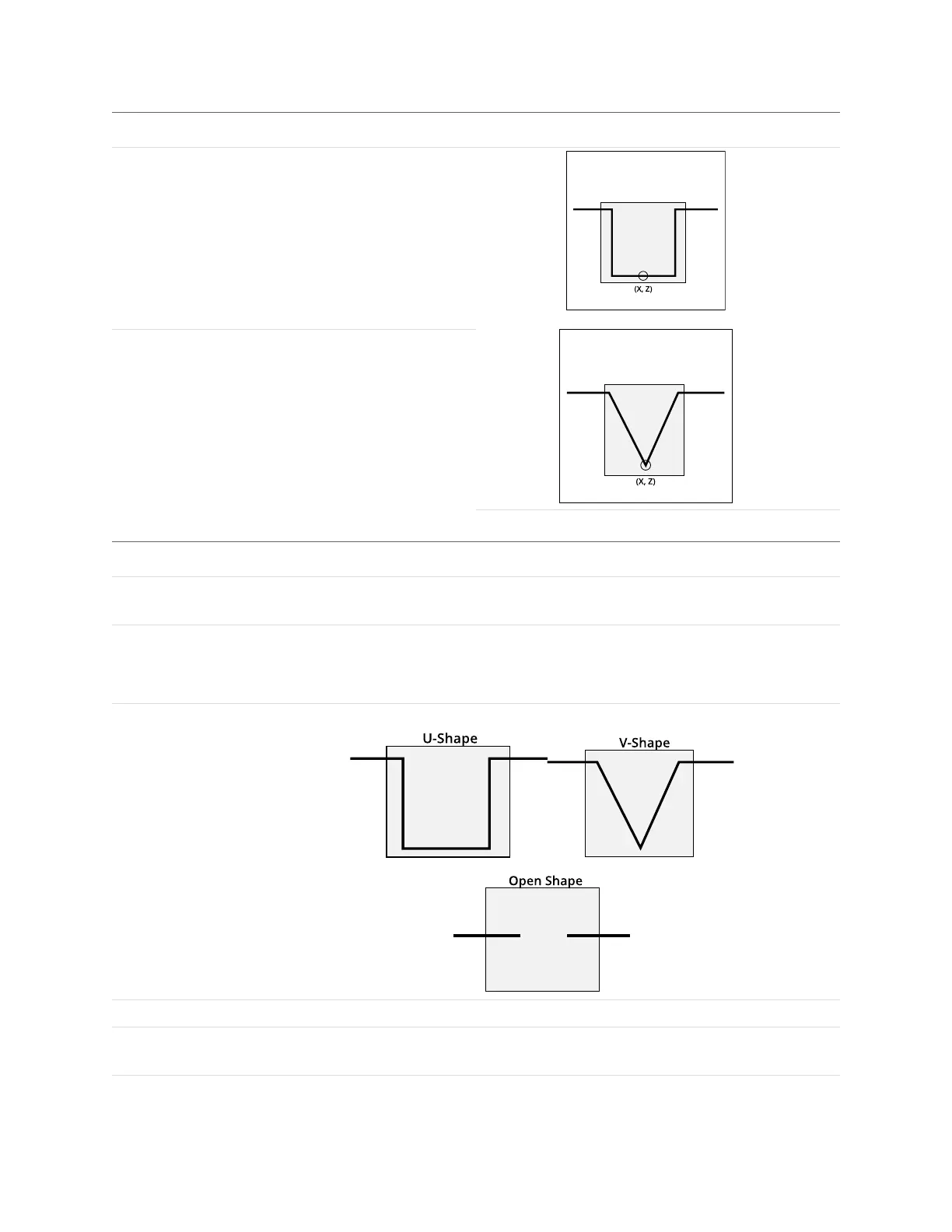

Measurement Illustration
X
Measures the X position of the bottom of a groove.
Z
Measures the Z position of the bottom of a groove.
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements. For
more information, see Source on page 183.
Stream The data that the tool will apply measurements to.
In Surface mode, this setting is only displayed when a section is defined on the surface data.
For more information on sections, see Sections on page 174.
Shape Shape of the groove
Min Depth Minimum depth for a groove to be considered valid.
Min Width Minimum width for a groove to be considered valid. The width is the distance between the
groove corners.
