Operating elements for driving
3.1 Overview of the operating elements
Operating manual 3 302 709 en 3 - 21
GMK5150L
12.01.2018

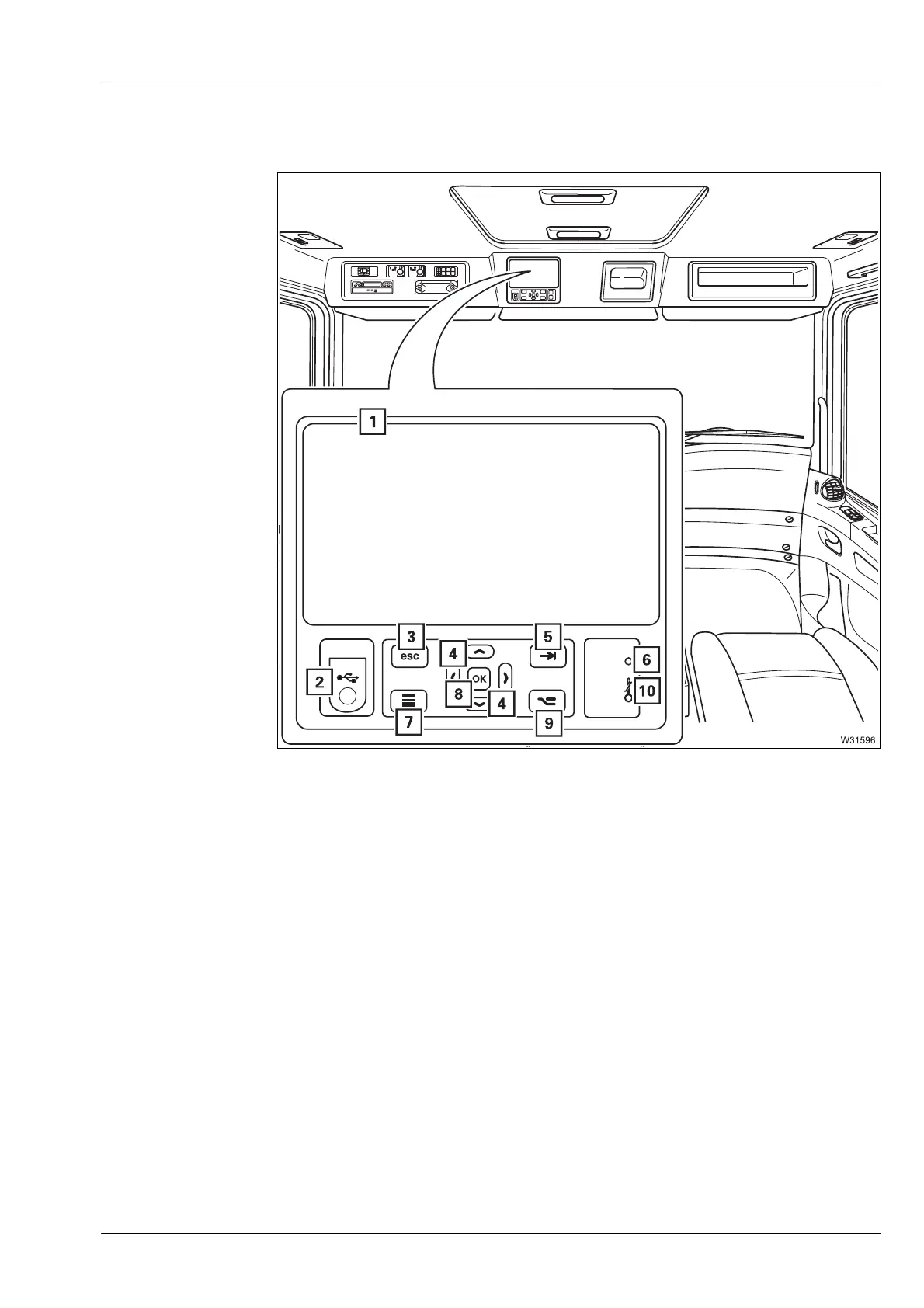

3.1.9 CCS control unit
1 CCS display
Overview start menu
à p. 3 - 23
2 Service/diagnosis connection
1)
à p. 3 - 71
3 Exiting the menu/input mode
à p. 3 - 47
4 Selector buttons
à p. 3 - 47
5 Selecting / deselecting favourites
à p. 3 - 49
6 Sensor for brightness
à p. 3 - 48
7 Overview menu groups – Operation
Overview menu groups – Overview
à p. 3 - 48
à p. 3 - 24
8 Input confirmation
à p. 3 - 47
9 no function
10 Display temperature warning display
à p. 3 - 48
1)
For Service personnel only, not suitable for external devices, e.g. mobile
phone
