Driving modes and rigging for on-road driving
6.6 Installing/removing the outrigger beams
6 - 62 3 302 709 en Operating manual
GMK5150L
12.01.2018
6.6.9 Unscrewing/screwing in the spacers
There are two spacers for each outrigger beam
– In the outrigger box
– In the outrigger beam on the opposite side.

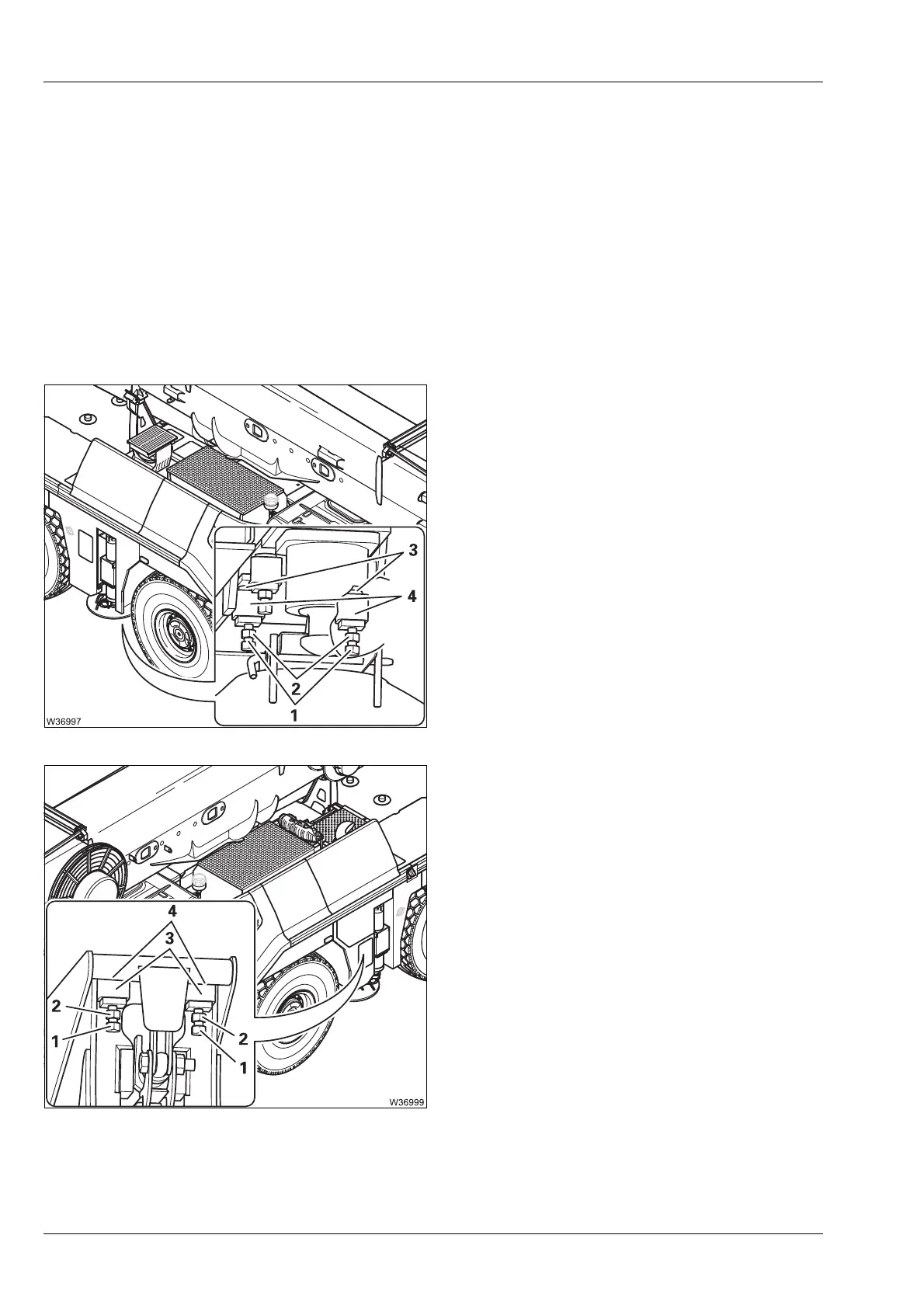

The illustrations show as an example the spacers for the outrigger beam on
the front right hand side.
Unscrewing Before you pull out the outrigger beams, you must unscrew the spacers.
At the outrigger box
• Undo the lug nuts (2).
• Unscrew the bolts (1) until the spacers (3)
are screwed into the outrigger box (4)
completely.
At the outrigger beam
• Undo the lug nuts (2).
• Unscrew the bolts (1) until the spacers (3)
are screwed into the outrigger beam (4)
completely.
