Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 26 3 302 709 en Operating manual
GMK5150L
12.01.2018

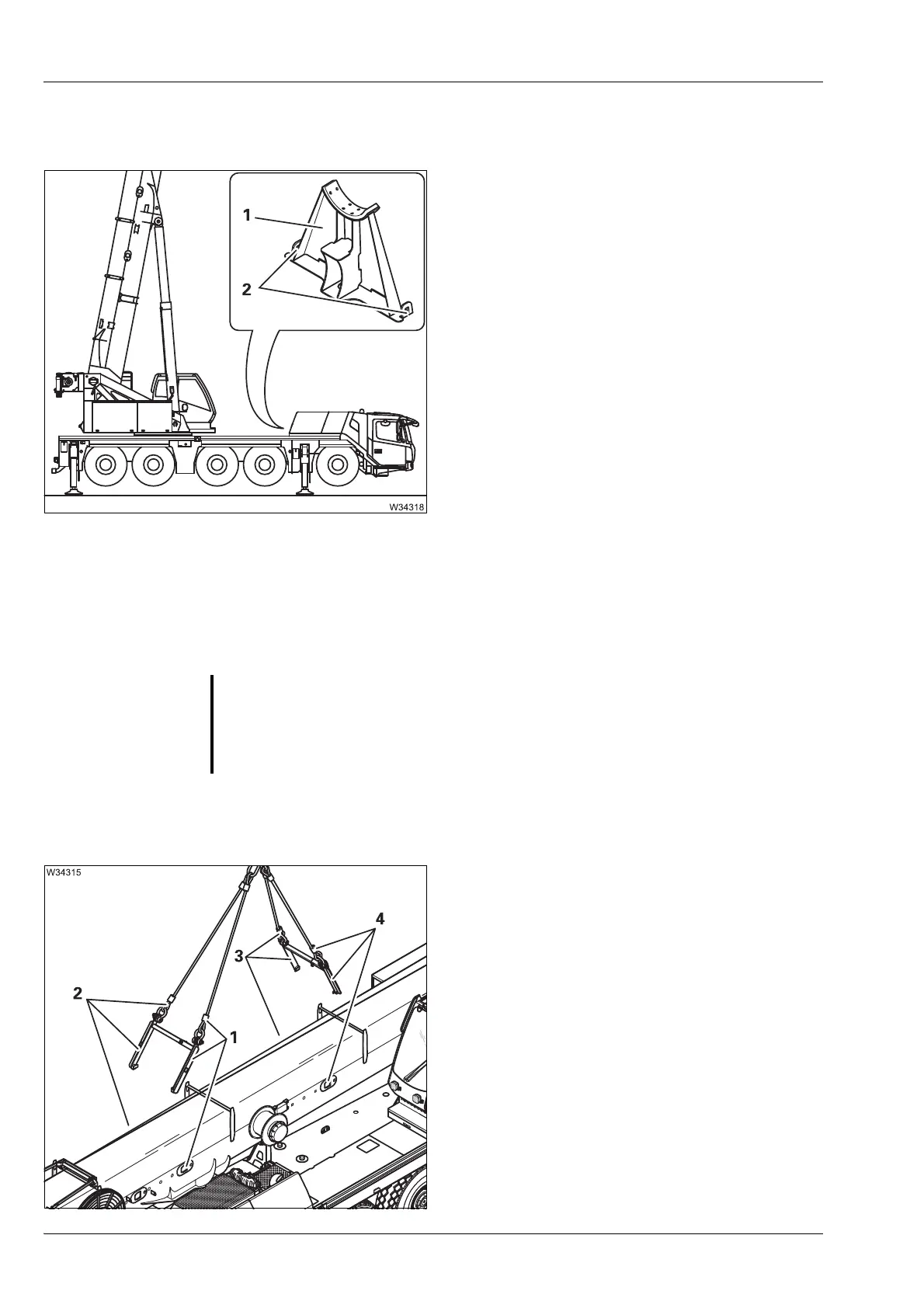

6.4.4 Derricking cylinder support
Before removal
Before retracting the head pin, the derricking
cylinder support must be erected.
• Place the derricking cylinder support (1)
between the holders (2).
• Set down the main boom on the boom rest.
After installation
• Take the derricking cylinder off before crane
operation and before on-road driving.
6.4.5 Slinging the main boom
Slings are fitted to the main boom when rigging and it is lifted with an
auxiliary crane. Note the equipment necessary for this;
à p. 6 - 17.
Marking The lifting gear is labelled.
Only connect the parts of the lifting gear that
have the same marking.
Only fasten the lifting gear to the slinging
points intended for this purpose. The
markings are of following significance:
G
Risk of accidents due to incorrect procedure!
Only use the lifting gear included in the delivery and proceed as described
in the following section.
1 FL – Front left
2 FR – Front right
3 BR – Rear right
4 BL – Rear left
