Operating elements for driving
3.2 Short description of the operating elements
3 - 40 3 302 709 en Operating manual
GMK5150L
12.01.2018

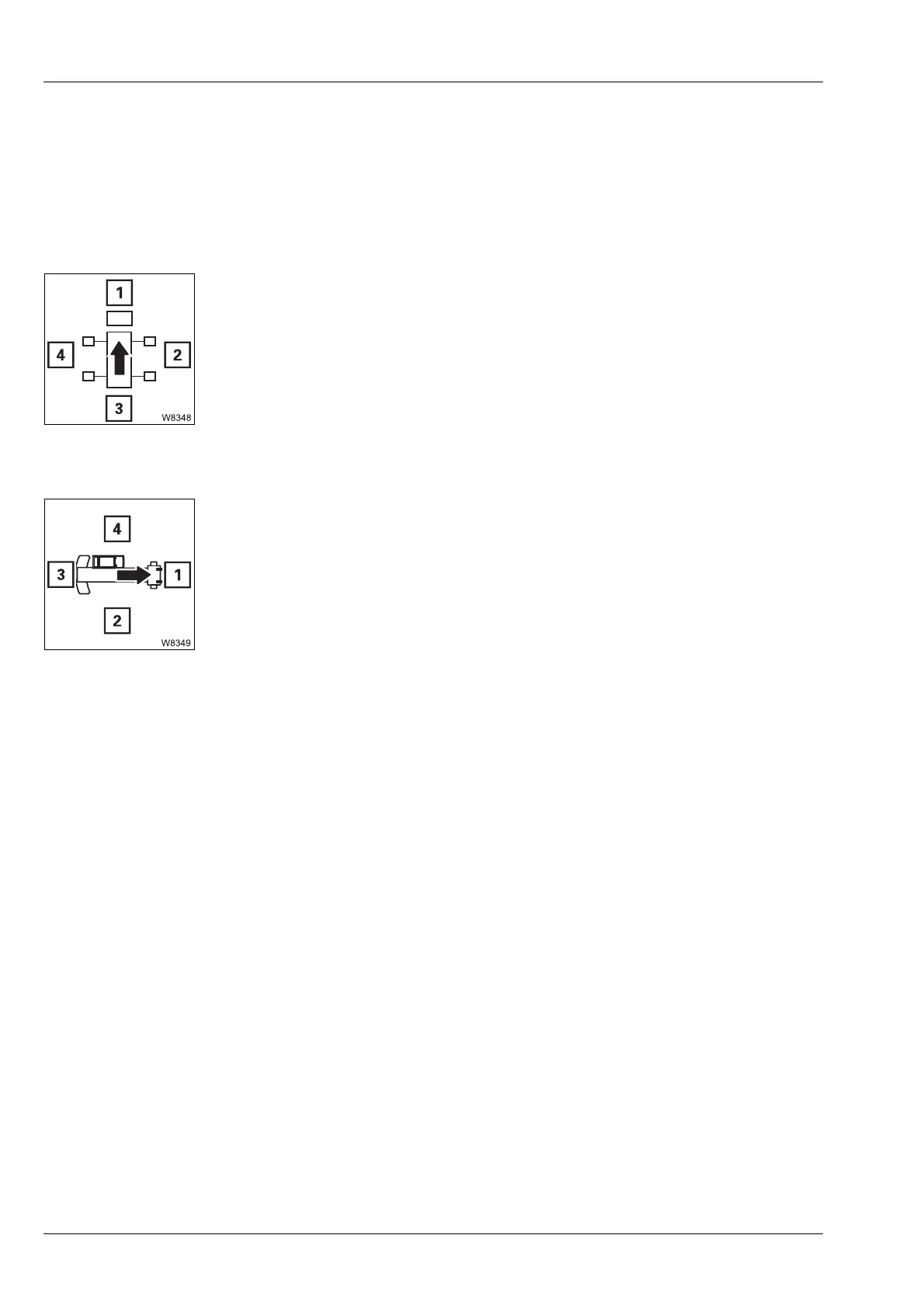

3.2.1 Definition of information relating to directions of movement
Basic rule Directions always depend on whether the carrier or the superstructure is
being operated.
On the carrier
The driver's cab is always at the front, which means that:
Forwards always means with driver's cab leading.
Backwards always means the rear lights on the carrier are to the front.
On the superstructure
The main boom head is always at the front, which means that:
1: front 2: right
3: rear 4: left
1: front 2: right
3: rear 4: left
