Rigging work
12.10 Rigging work on the main boom
12 - 132 3 302 709 en Operating manual
GMK5150L
12.01.2018
12.10.6 Possible reevings on the main boom
Possible reevings on lattice extensions and the auxiliary single-sheave
boom top;
à Lattice extension operating manual.
H
The maximum lifting capacity is specified in the supplied lifting capacity table.
With 6 head
sheaves
If 8 head sheaves are provided;
à p. 12 - 135.
If 9 head sheaves are provided;
à p. 12 - 138.
6-sheave hook block

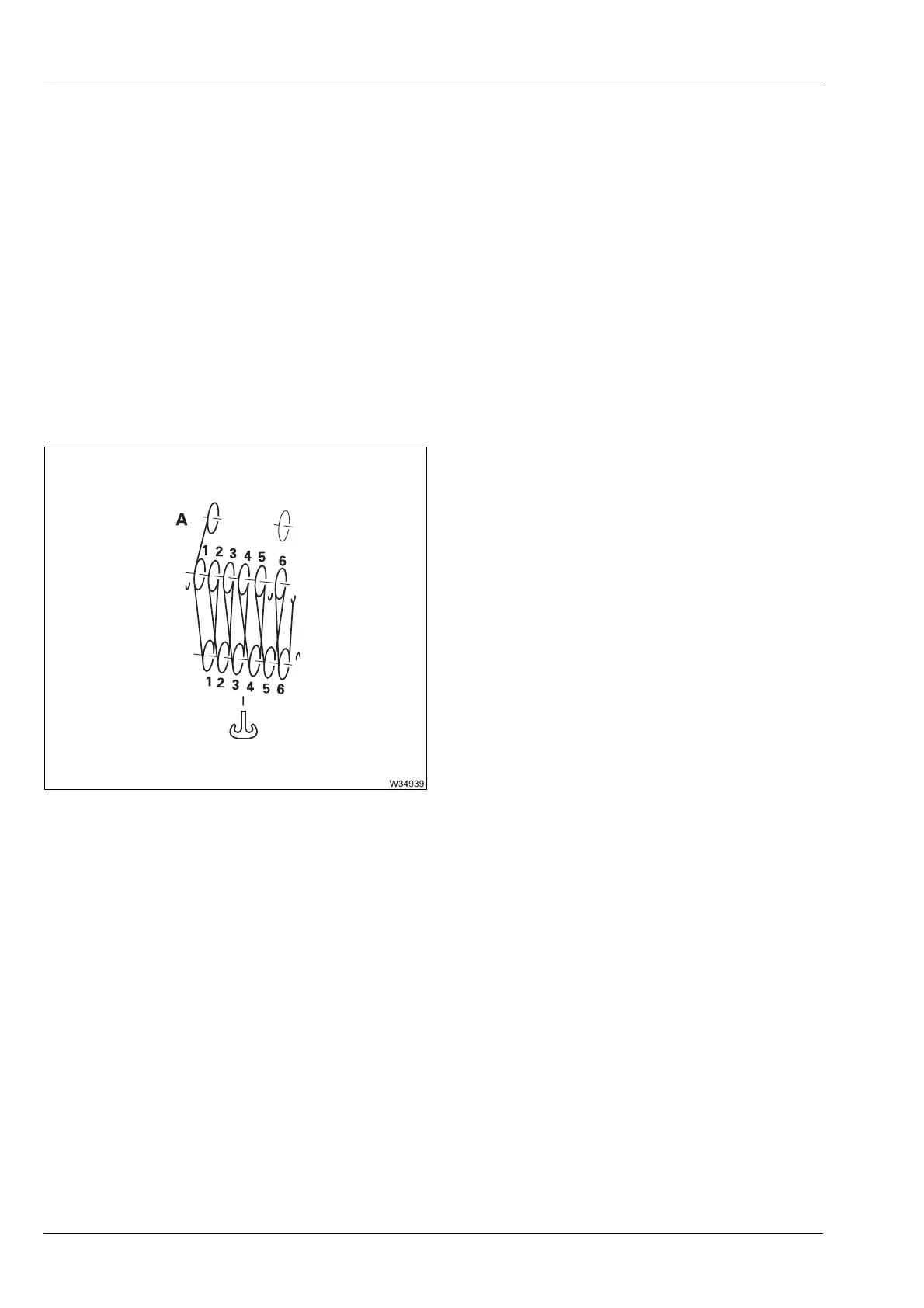

Reeving
A 12-fall
