Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 709 en 12 - 73
GMK5150L
12.01.2018
12.9.2 Counterweight sections
Depending on the version, the GMK5150L can be equipped with a counter-
weight mass of 1.0 t (2,205 lbs) or 44.5 t (98,106 lbs).

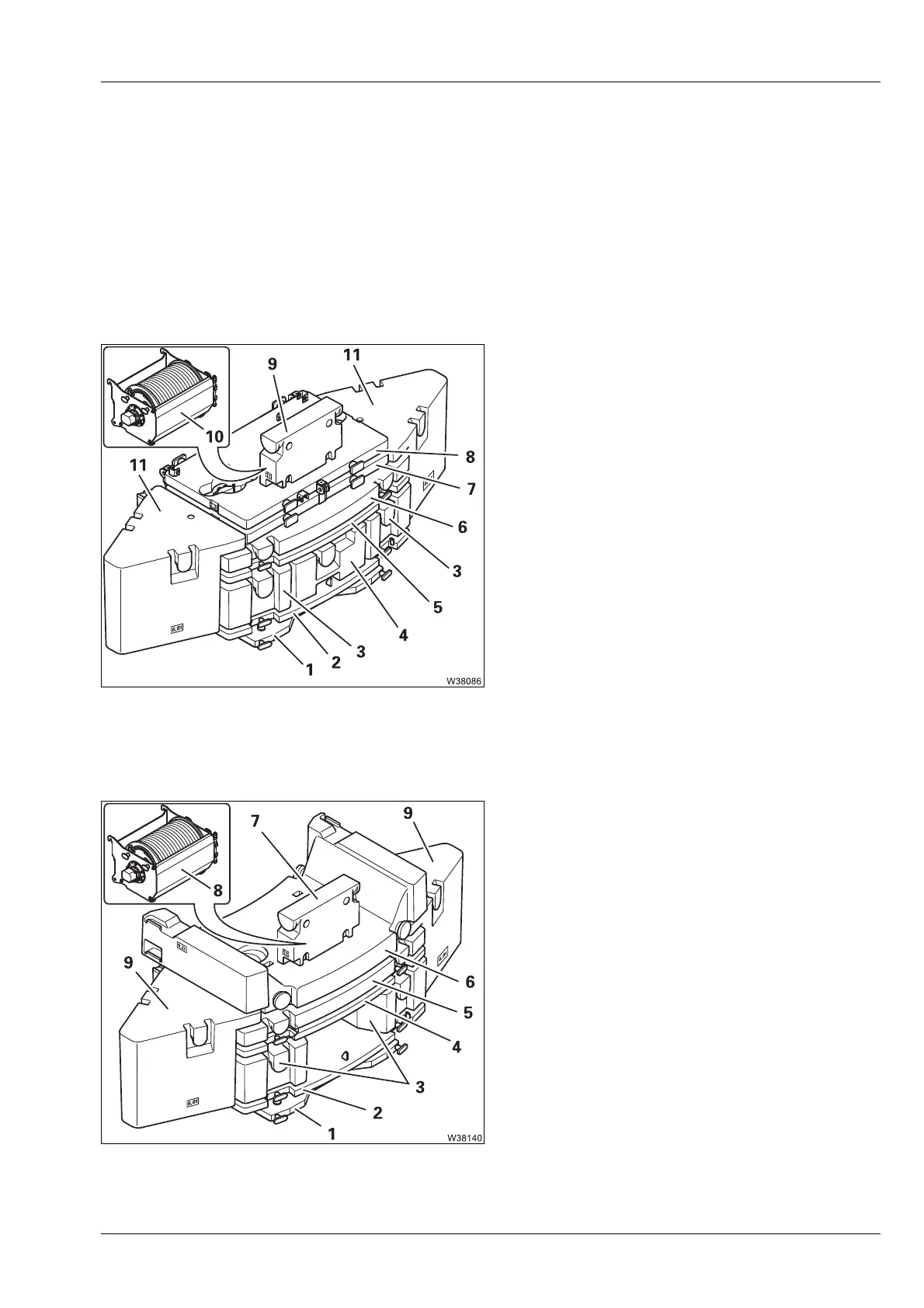

There are various counterweight sections, depending on the truck crane's
version and additional equipment.
Version 1 This version enables you to drive with maximum axle loads of 12 t.
Counterweight
– one 2.3 t base plate (1),
– one 2.3 t section (2),
– two 4.6 t blocks (3),
– one 4.6 t block (4),
– one 2.3 t section (5),
– one 4.6 t section (6),
– one 2.3 t section (7),
– one 2.3 t section (8),
– one 1.0 t plate (9) or
the auxiliary hoist (10),
– two 6.8 t blocks (11).
Version 2 With this version, 24 t maximum counterweight can be transported with the
truck crane. The axle loads are over 12 t.
Counterweight
– one 1.0 t plate (7) or the auxiliary hoist (8),
– one 2.3 t base plate (1),
– one 2.3 t section (2),
– two 4.6 t blocks (3),
– one 2.3 t section (4),
– one 4.6 t section (5),
– one 9.2 t section (6),
– one 1.0 t plate (9) or
the auxiliary hoist (10),
– two 6.8 t blocks (7).
