Rigging work
12.8 Outrigger operation
12 - 66 3 302 709 en Operating manual
GMK5150L
12.01.2018
12.8.11 Operating the axle raising system
The axle raising system has two functions.
– Lifting/lowering wheels
When the truck crane is supported on outriggers, you can raise the wheels
(e.g. levelling horizontally) or lower the wheels (e.g. for driving with a
rigged mobile crane).
– Aligning the truck crane
When driving with a rigged truck crane, you can level the free-standing
truck crane – with a locked suspension, without first supporting the truck
crane on outriggers.
Menu, open
The
Raise axle menu can only be opened when
the suspension is switched off (locked);
à Switching the suspension on/off, p. 5 - 16.

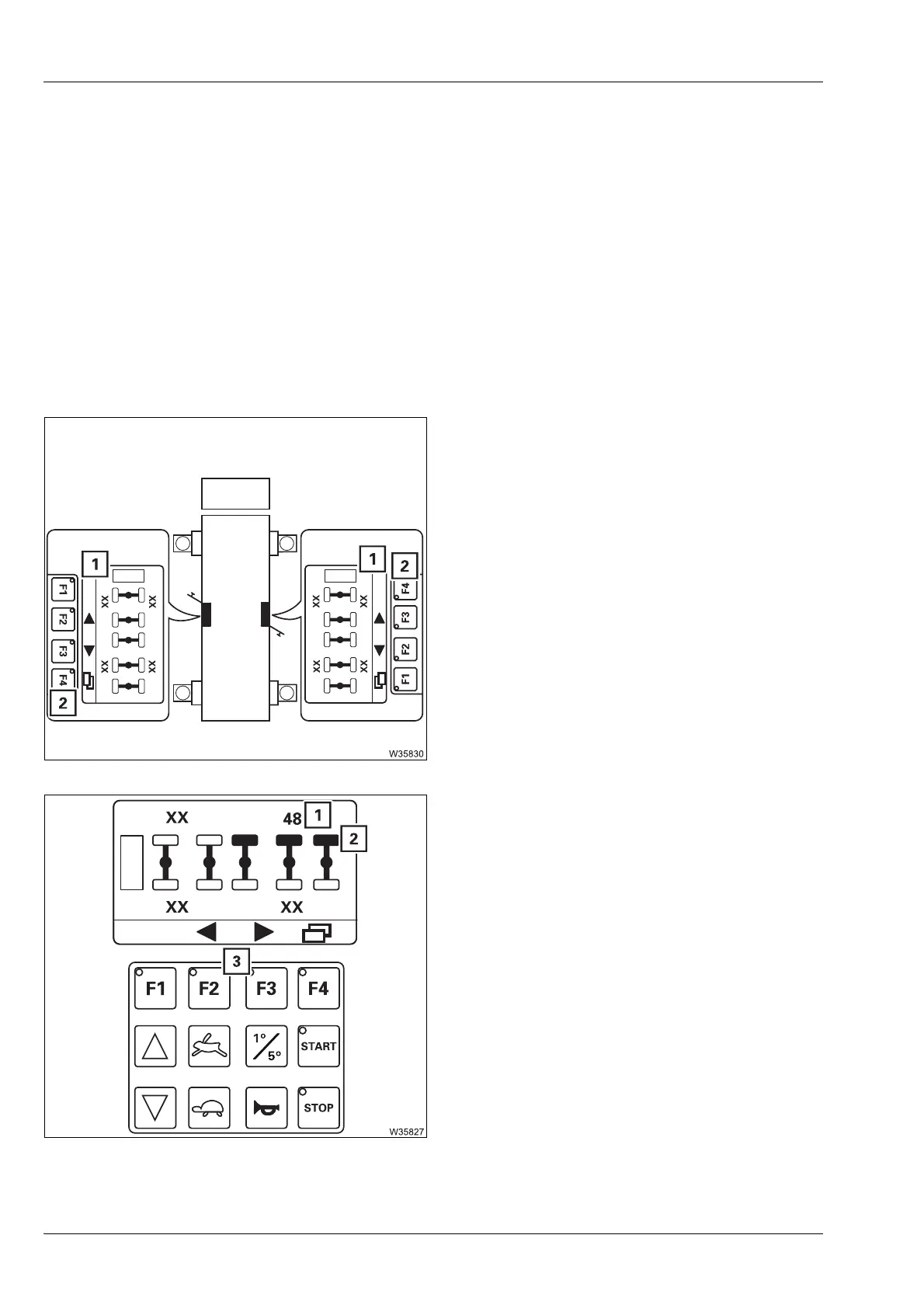

• Press button (2) repeatedly until the
Raise Axle menu (1) is displayed.
The assignment to the carrier corresponds to
the top view.
The operation is same on both sides.
Only certain wheel groups can be selected;
à Selectable wheel groups, p. 9 - 106.
• Use the buttons (3) to select the required
wheels – selected wheels (2) are shown in
black.
Movements are only enabled when the wheel
load per wheel is a maximum of 16 t (35 klbs) –
e.g. 48 t (105 klbs) on the display (1) with a
pre-selected wheel group (2).
