Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 9 - 85
GMK5150L

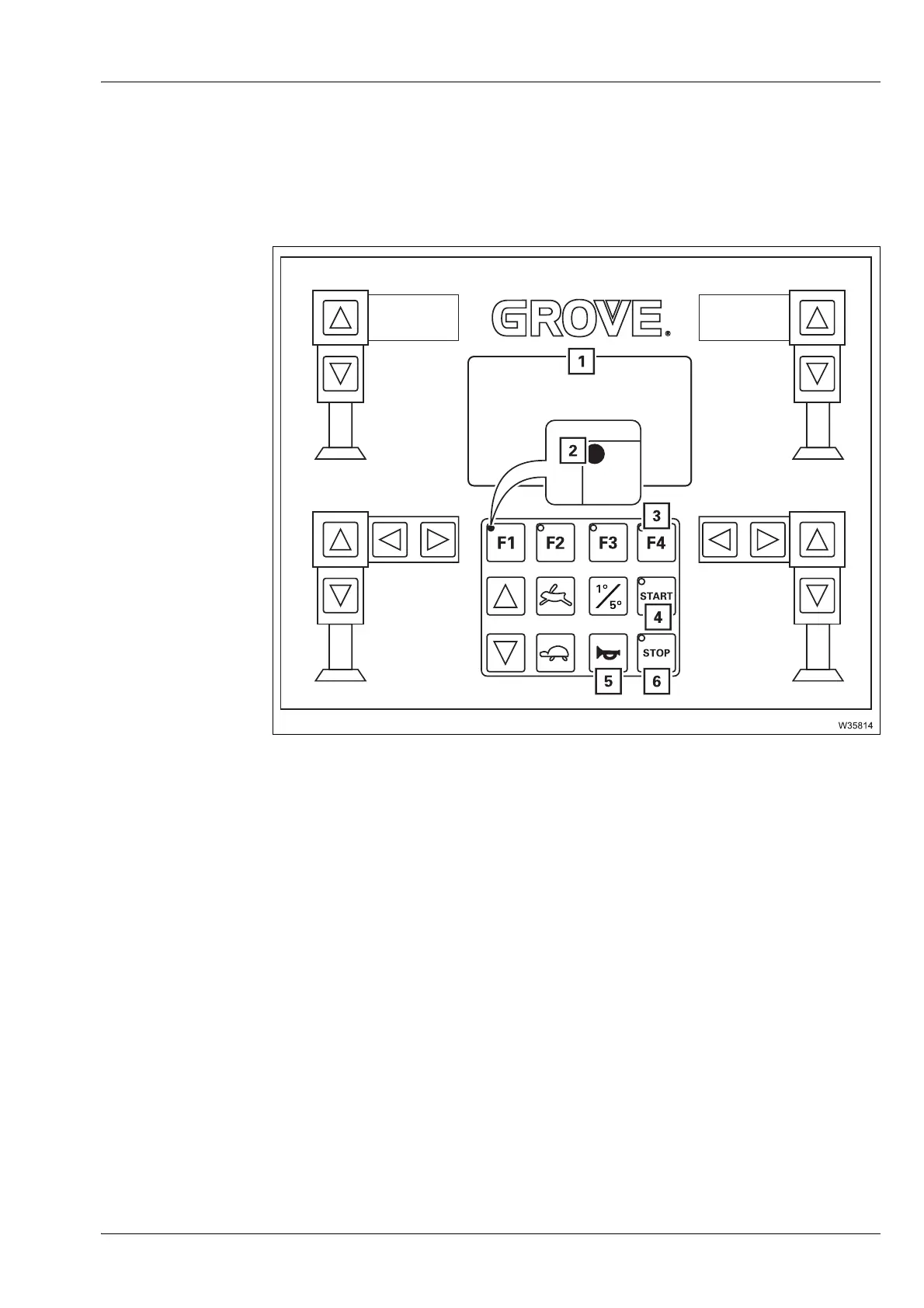

9.1.23 Outriggers control units
Menu-
independent
buttons
This function of the illustrated buttons is the same in all the menus.
This function of the other buttons depends on the opened menu.
s
1 Outrigger display à p. 9 - 103
2 Position lights for indicator lamps
à p. 9 - 103
3 Menu selection
– Outrigger menu
– Raise axle menu
à p. 9 - 103
à p. 9 - 86
à p. 9 - 88
4 START engine
à p. 12 - 29
5 Horn
à p. 9 - 104
6 STOP engine
à p. 12 - 29
