Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 109
GMK5150L

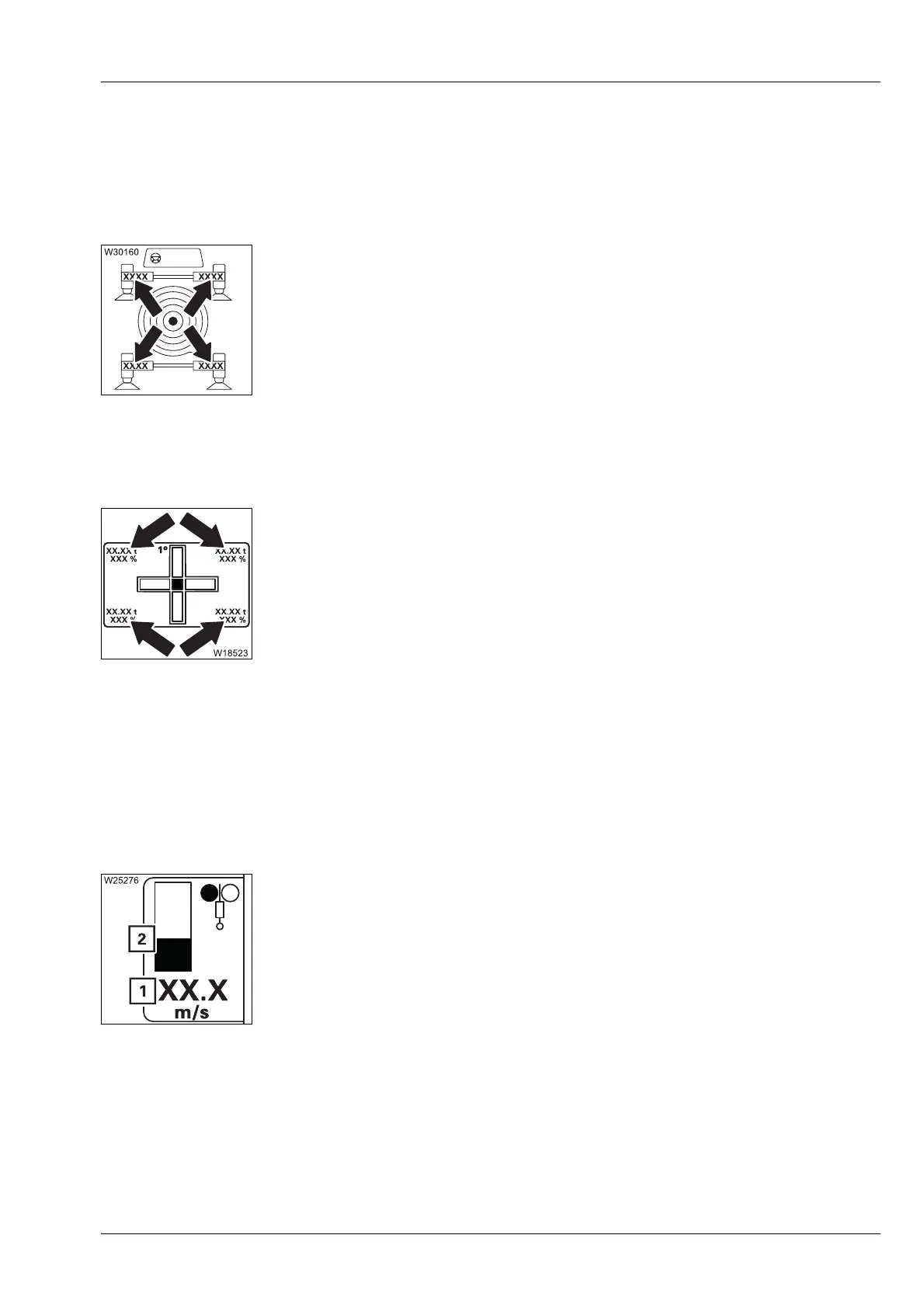

9.2.11 Outrigger pressure displays
Outrigger menu
Outrigger pressure display
Outriggers
control units
Outrigger pressure display
9.2.12 Anemometer displays
This function is the same in all the menus.
The anemometer is electrically connected.
v
max
= maximum permissible/reduced wind speed as shown in the
Lifting capacity table
– Unit of measurement: Displayed depending on setting
– t – tons or
– klbs – kilopounds – (1 kilopound = 1,000 lbs)
– Precision: One decimal place
à p. 12 - 68
– Unit of measurement: Lights up depending on setting
– t – tons or
– klbs – kilopounds – (1 kilopound = 1,000 lbs)
– Precision: When in t, one place of decimals
When in klbs, no places of decimals
à p. 12 - 69
1 Display in metres per second (m/sec) or Beaufort scale (B)
2 Variable measurement range – 100% = v
max
–Green: Display (1) ≤ 90% of v
max
–Red: Display (1) > 90% of v
max
à p. 11 - 74
