Driving modes and rigging for on-road driving
6.5 Rigging the auxiliary hoist
Operating manual 3 302 709 en 6 - 41
GMK5150L
12.01.2018

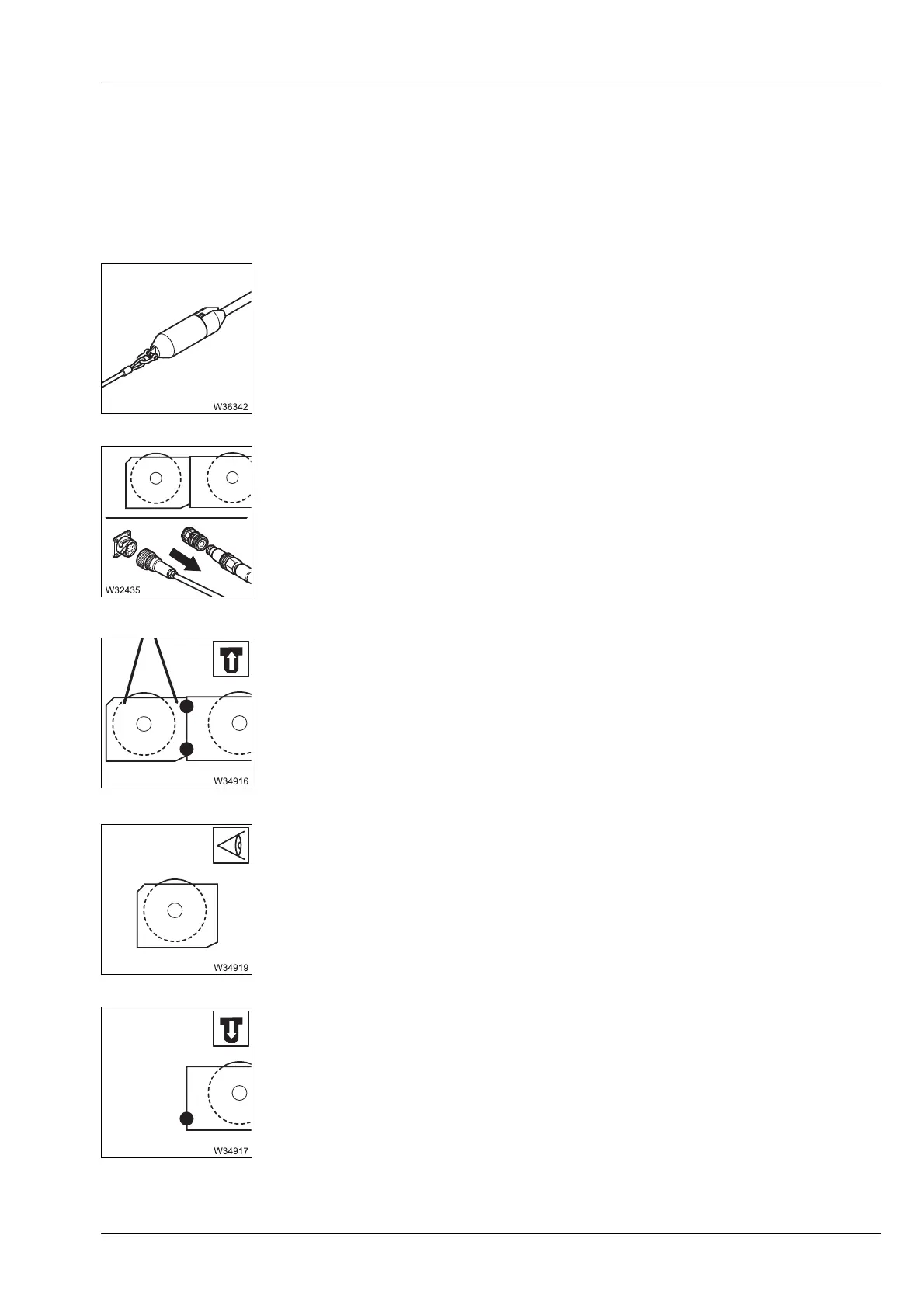

6.5.3 CHECKLIST: Removing the auxiliary hoist
– The main boom must be resting in the boom rest.
– The hoist rope is unreeved.
1. Wind on the auxiliary hoist rope, using the rigging aid if necessary;
à p. 6 - 48.
2. – Disconnecting hydraulic connections;
à p. 6 - 43.
– Disconnecting the electrical connection;
à p. 6 - 44.
– Disconnect the connection to the central lubrication;
à p. 6 - 45
3. – Attach the auxiliary hoist at the centre of gravity;
à p. 6 - 42.
– Disconnect the connection between the auxiliary hoist and turntable;
à p. 6 - 42.
4. Lift the auxiliary hoist onto the separate vehicle and prepare it for
transportation;
à p. 6 - 46.
5. Insert and secure the pin;
à p. 6 - 46.
