Starting/switching off the engine – for crane operation
10.2 Starting the engine – from the crane cab
10 - 8 3 302 709 en Operating manual
GMK5150L
12.01.2018
10.2.7 Checks after starting the engine
•

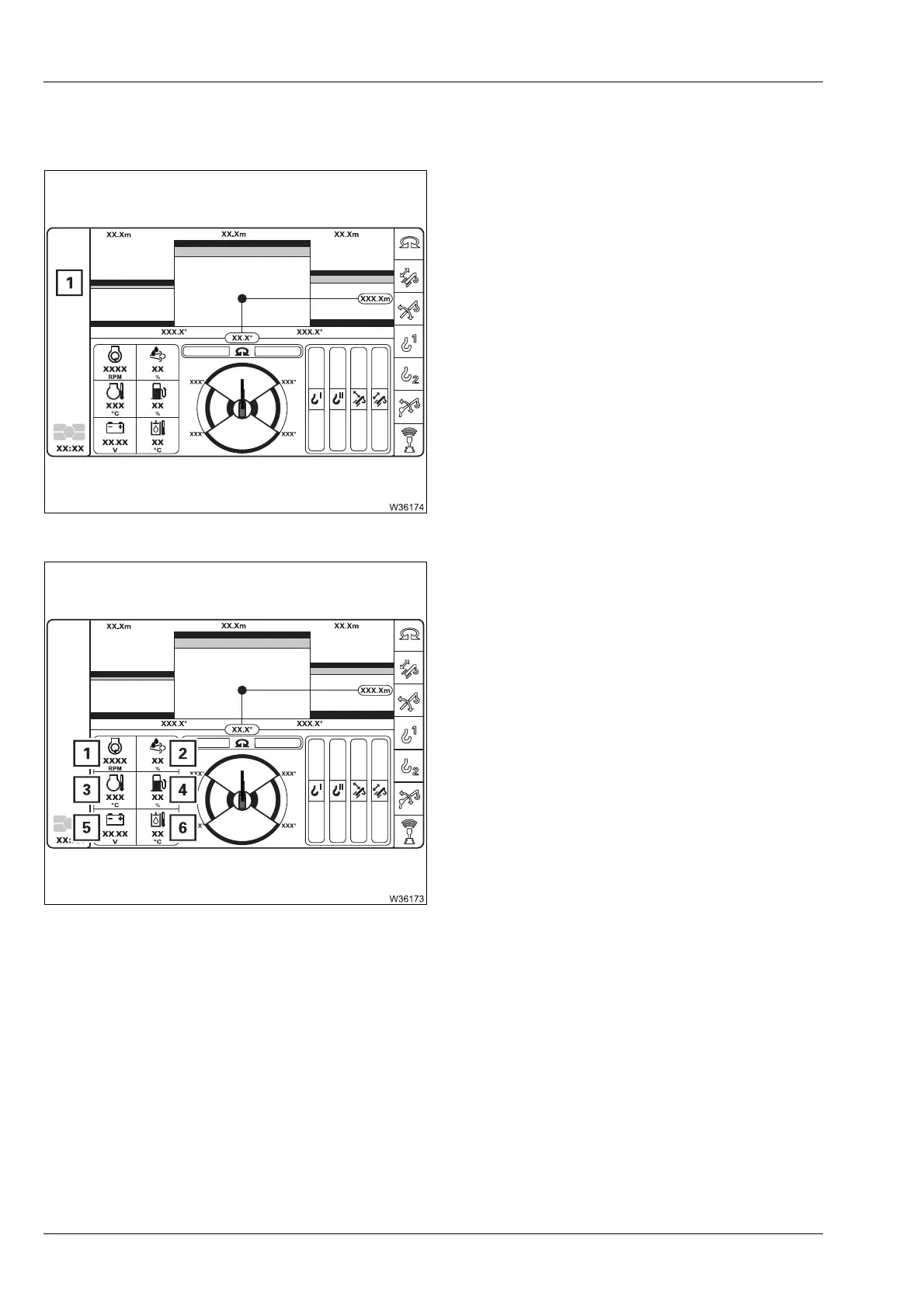

Check the display (1) on the CCS control unit
immediately after starting the engine.
When a symbol is displayed in the display
area (1);
à Malfunctions on the engine,
p. 8 - 19.
• Also check the displays
The colour of the level indicator indicates within which range the value can
be found.
1 Engine speed display
in rpm
2 AdBlue (DEF) filling level indicator
in per cent
3 Coolant temperature display
in °C (°F)
4 Fuel level display
in percent
5 Voltage monitoring display
in volts
6 Hydraulic oil temperature display
in °C (°F)
Green: Value OK
Yellow: Limit value almost reached
Red: Limit value exceeded (or not reached) – warning message;
à p. 14 - 3.
