Manitowoc GROVE GMK5150L

Operating elements for driving
3.2 Short description of the operating elements
3 - 68 3 302 709 en Operating manual
GMK5150L
12.01.2018
3.2.17 Level adjustment system
à Operating the level adjustment system, p. 5 - 53.

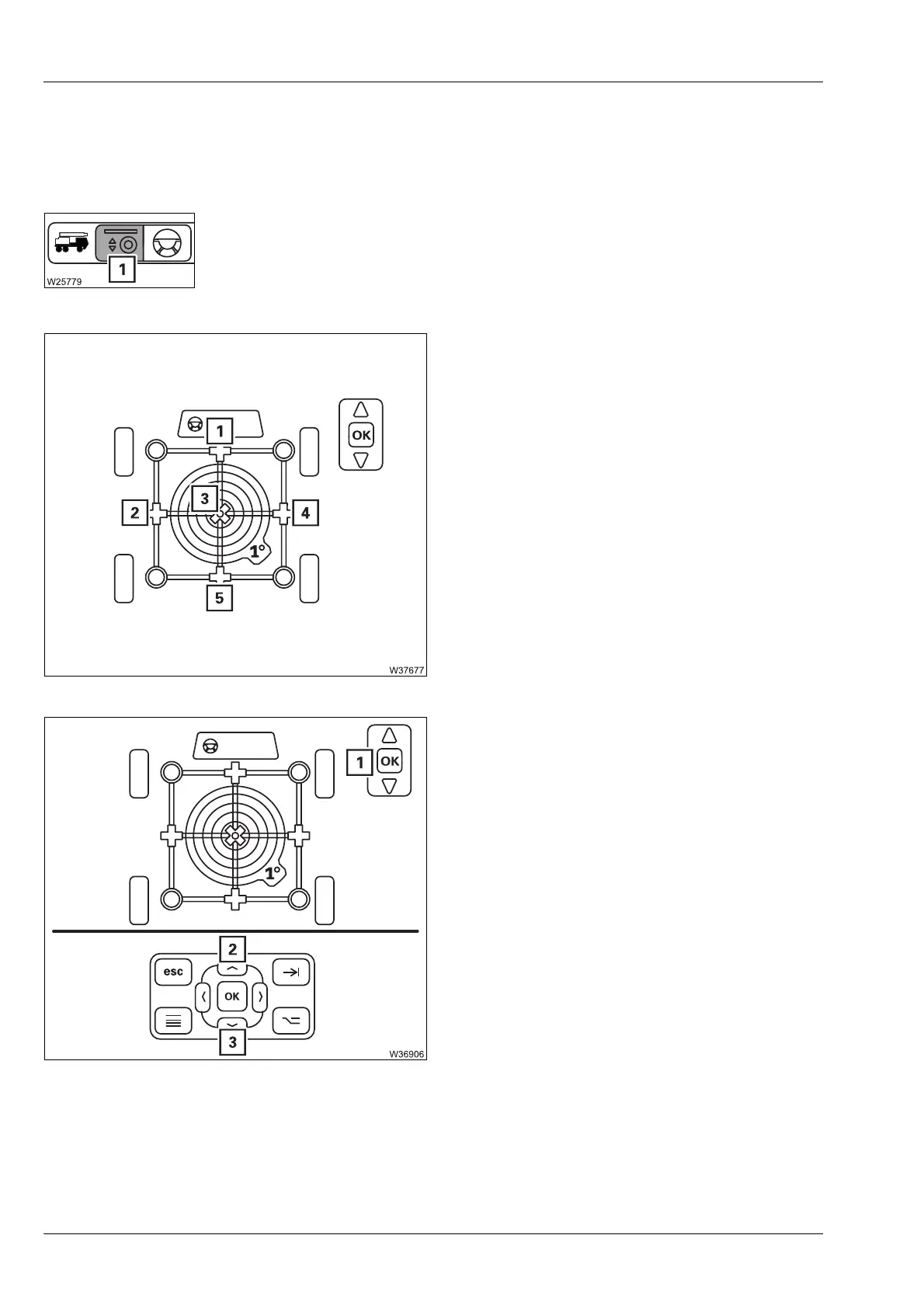

Suspension/level adjustment menu
Lift/lower preselection level
The suspension must be switched on
.
Select and confirm the corresponding symbol.
Level adjustment system enabled display
Level change
Movement stops after the button is released
and when an end position is reached.
– Opening: Select symbol (1) and confirm – menu is opened
2 Left level pre-selection
1 Front level pre-selection
4 Right level pre-selection
5 Rear level pre-selection
3 Overall level pre-selection
1–Displayed
Level pre-selection on,
buttons (2) and (3) active.
–Hidden
Level pre-selection off,
buttons (2) and (3) not active.
2 Raise the level
3 Lower level
