Manitowoc GROVE GMK5150L - RCL Control Unit

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 76 Operating manual
GMK5150L

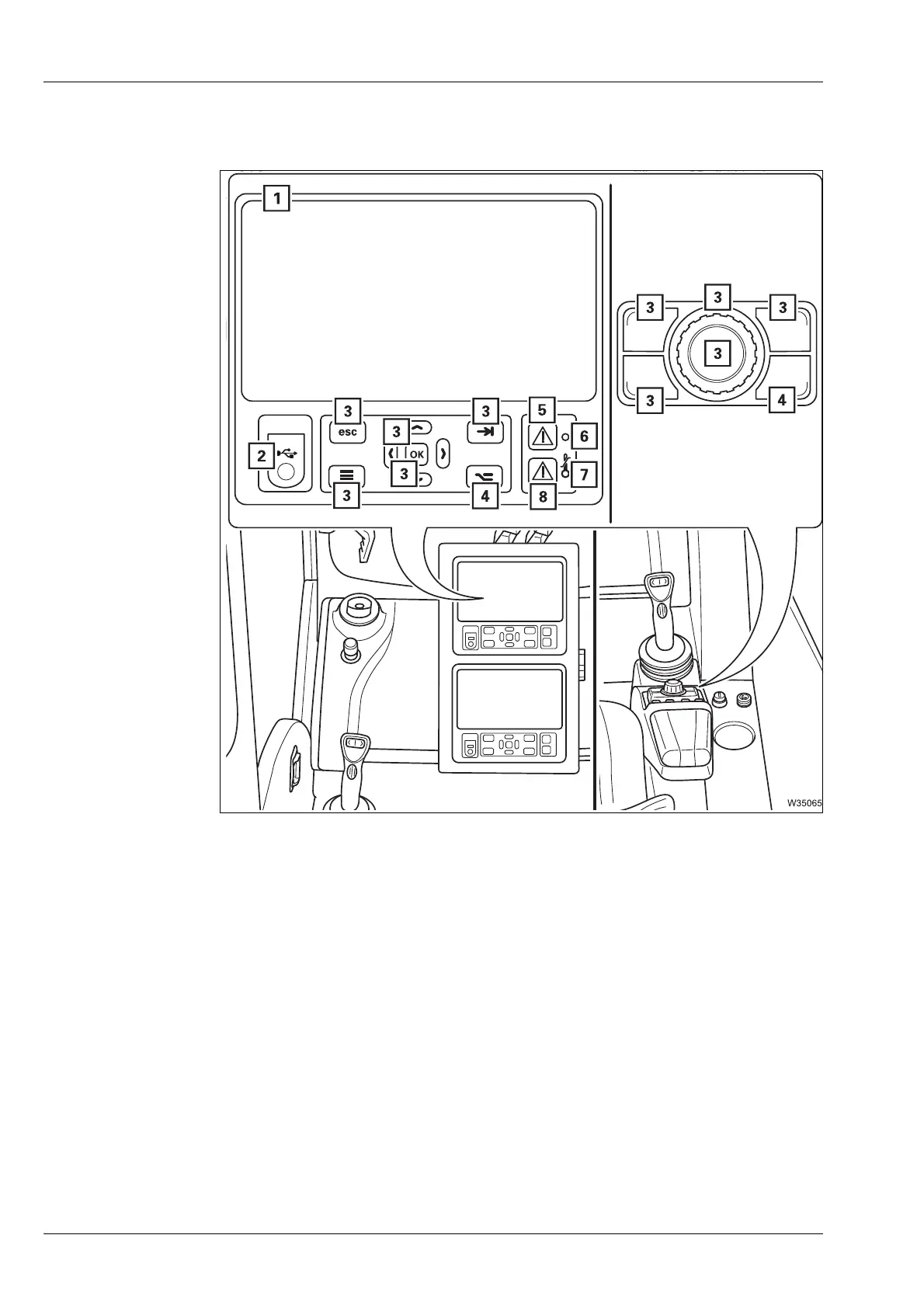

9.1.19 RCL control unit
1 RCL display
2 USB connection for data export
à p. 9 - 142
3 No function
4 Switch off
RCL buzzer à p. 9 - 98
5 RCL early warning
à p. 11 - 57
6 Sensor for brightness
à p. 9 - 98
7 RCL shutdown
à p. 11 - 57
8 Display temperature warning display
à p. 9 - 100
