Operating elements for crane operation
9.1 Overview of the operating elements
9 - 14 Operating manual
GMK5150L
9.1.4 Control lever assignment
The truck crane can be equipped with two different control lever
configurations. The current configuration of the control levers is indicated
by symbols on the control levers.

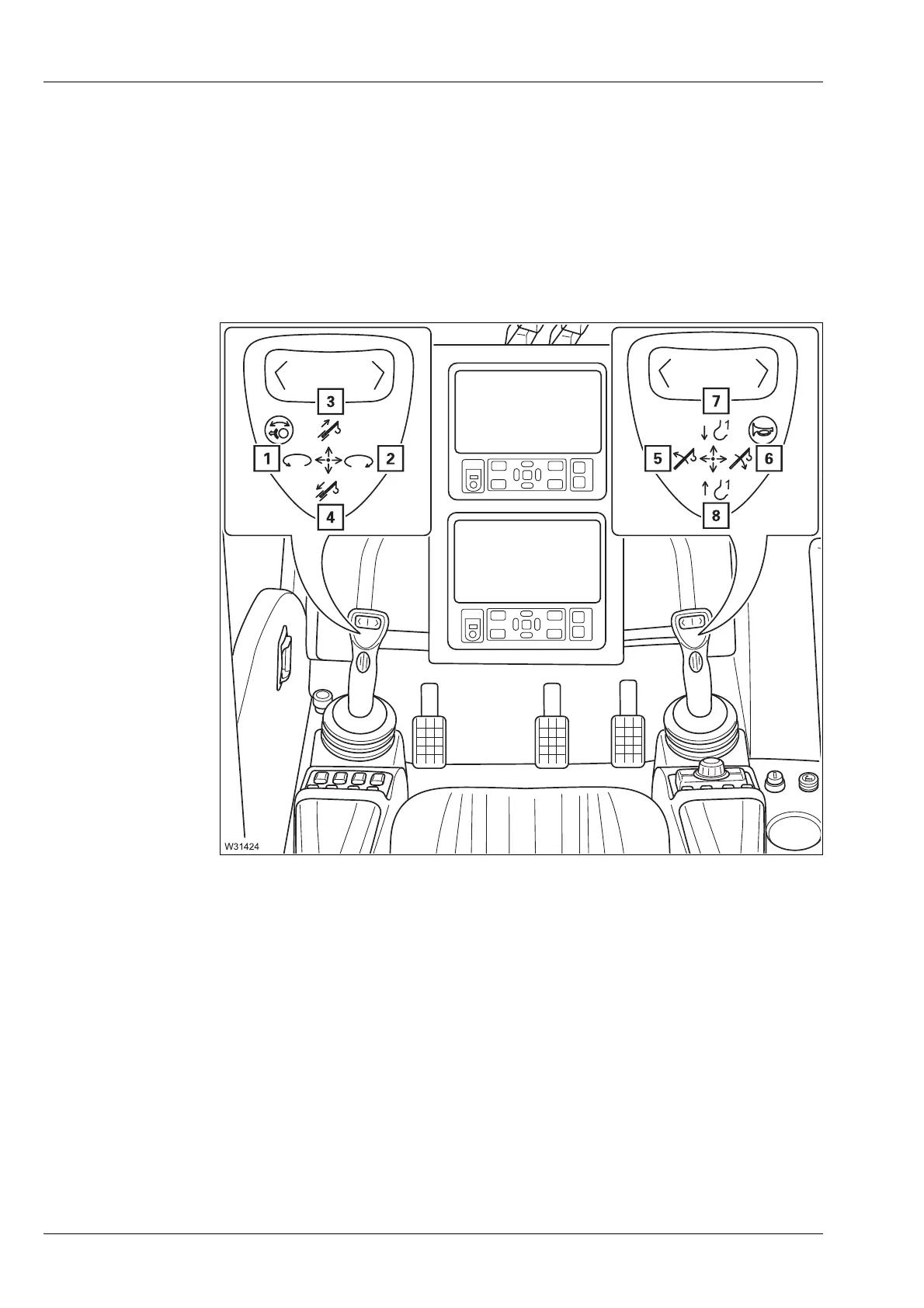

Version 1 In version 1, the left control lever is configured with the
Telescope function.
Left control lever Right control lever
1 Slewing to the left 5 Raising
2 Slewing to the right 6 Lowering the boom
3 Extension 7 Lower the main hoist
4 Retraction of the telescoping 8 Lift the main hoist
