Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 36 3 302 709 en Operating manual
GMK5150L
12.01.2018
6.4.11 Aligning the connecting points
•

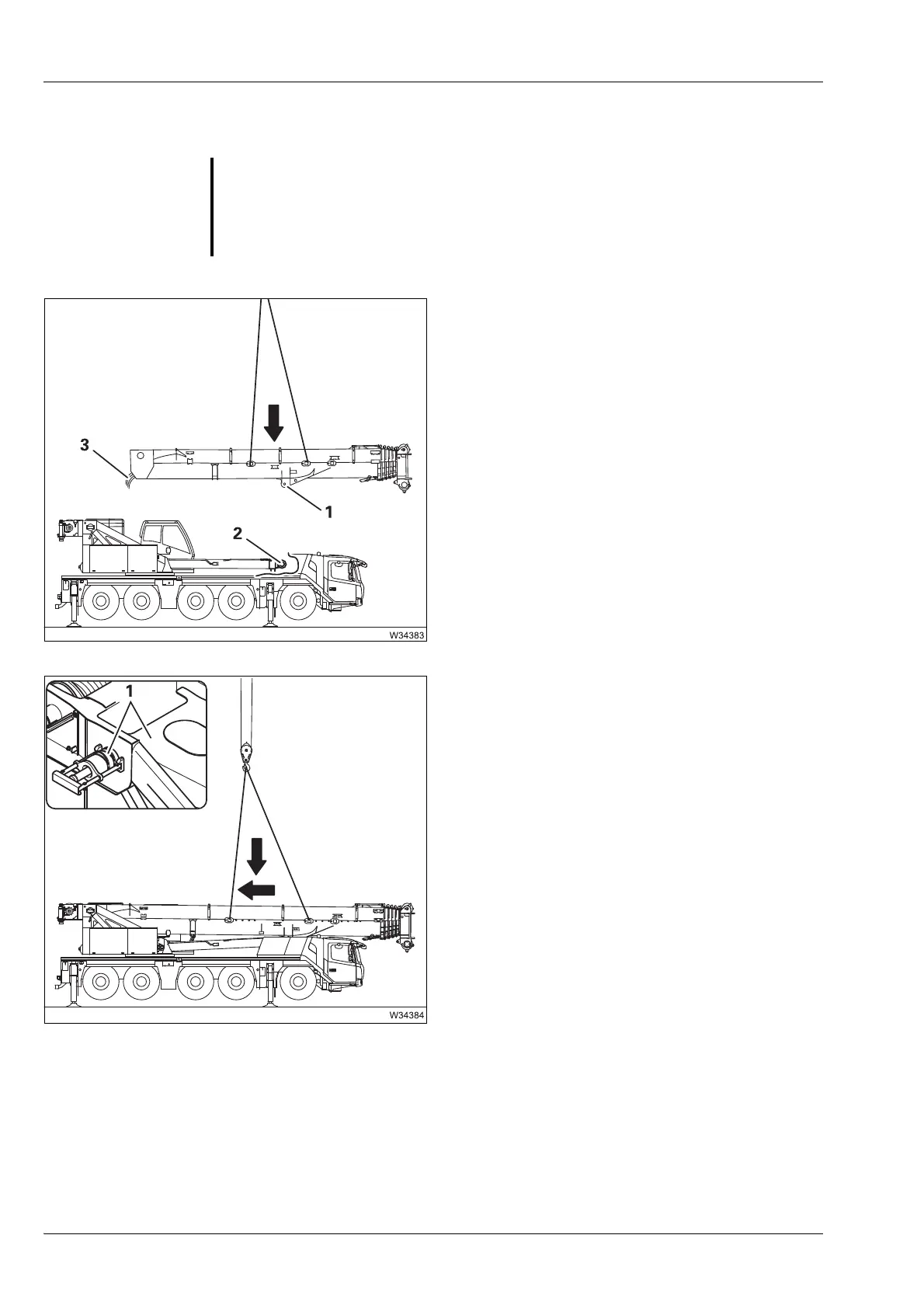

Hoist the main boom top in front of the
turntable. Make sure that:
– The hydraulic/electrical connection
lines (3) do not hang loose
– The pivot point (1) is higher than the
driver's cab,
– The connecting points are not tilted.
• Lay the hoses into the turntable in such as
way that they are not damaged during
alignment.
• Align the main boom so that the boom pivot
pin is aligned with the bearing points (1) in
the turntable.
• Hold the main boom in this position until the
pivot pin is pushed in.
S
Risk of damage to the turntable and the connection lines
Make sure that the connection lines are located within the turntable and
that the main boom does not swing when you raise it for insertion into the
turntable.
