Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
9 - 162 Operating manual
GMK5150L

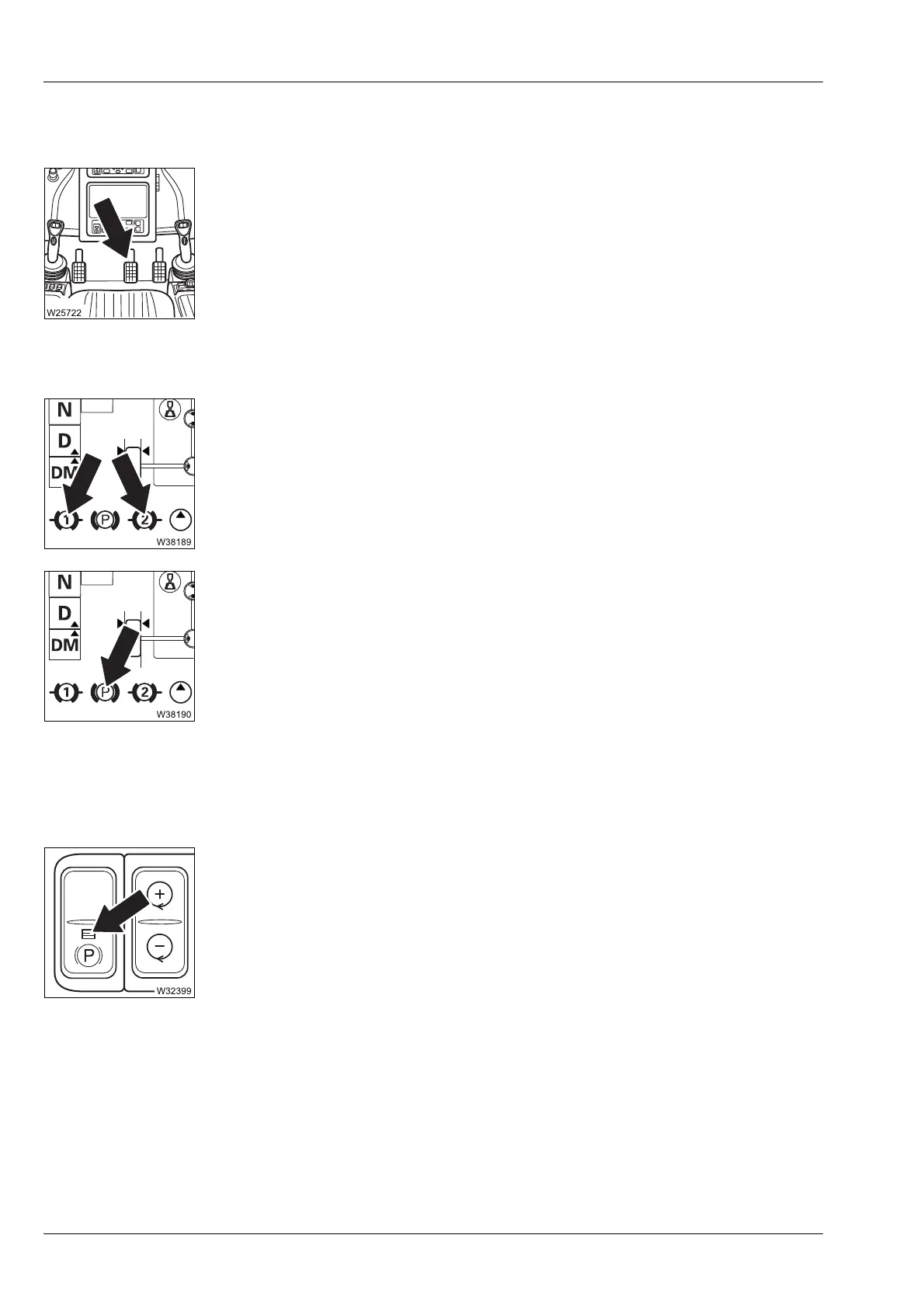

9.3.4 Brakes
Service brake
The pedal acts on the carrier brakes – for continuously variable adjustment
of the braking force.
CCS display
Supply pressure brake circuits 1 and 2 display
Parking brake indicator lamp
Side panel
from above
Parking brake indicator lamp
–Red: Supply pressure less than about 5 bar
– Green: Supply pressure greater than 5.5 bar
–Red: Parking brake applied
–Grey: Parking brake released
–On: Parking brake applied
–Out: Parking brake released
