Driving modes and rigging for on-road driving
6.6 Installing/removing the outrigger beams
6 - 60 3 302 709 en Operating manual
GMK5150L
12.01.2018

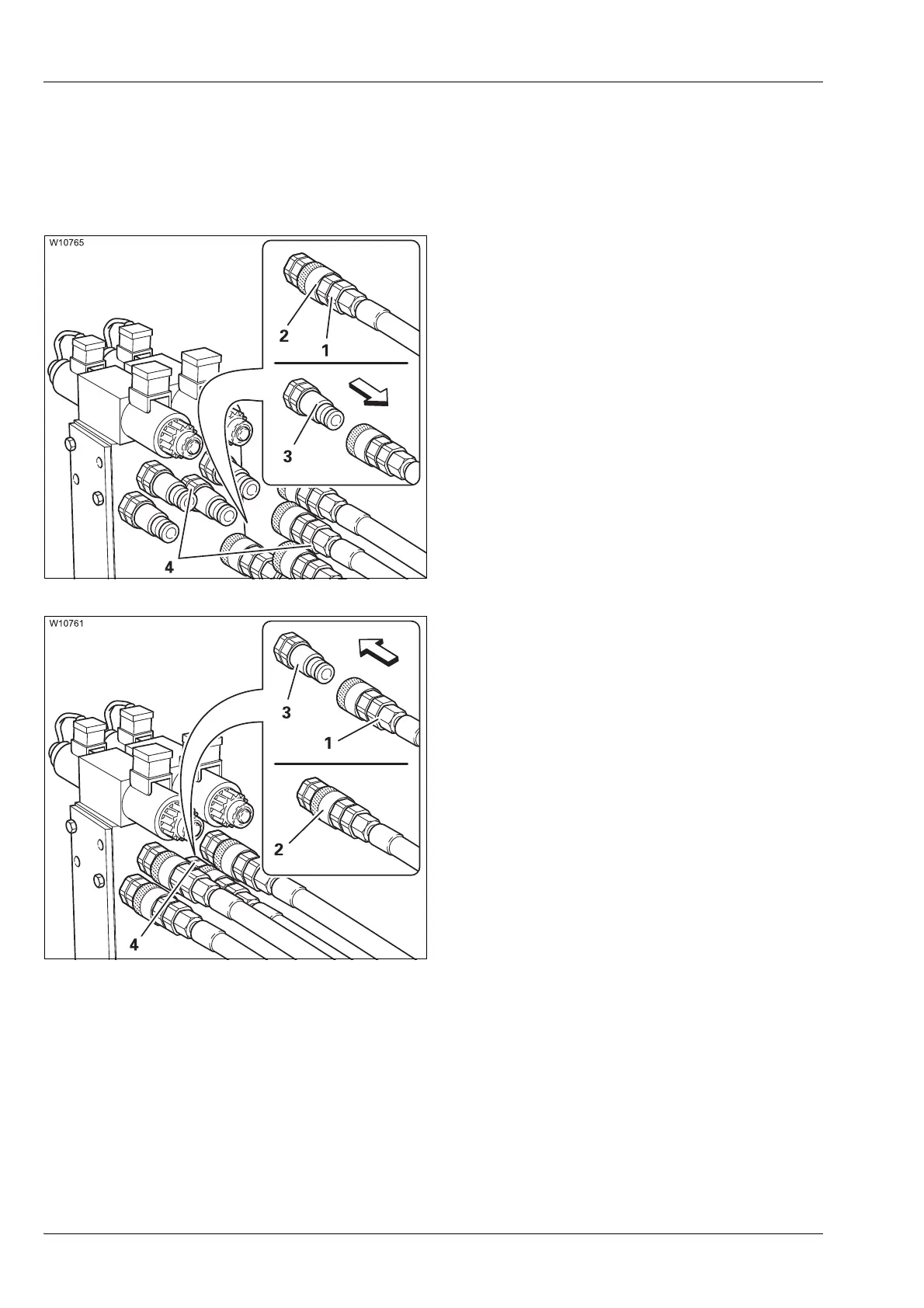

6.6.7 Disconnecting/establishing hydraulic connection
There is a valve block on each outrigger beam. The position of the valve
block may differ from the drawings, depending on the outrigger beam.
Undoing the connection
Always disconnect all connections (4).
• Hold the hose (1) firmly.
• Pull the lock (2) against the stop. The hose is
pushed out of the connection (3).
• Seal all connecting points.
Making the connection
Always establish all connections (4).
The assignment is specified by colour
designations.
• Insert the hose (1) into the connection (3).
• The lock (2) engages.
