Crane operation
11.3 MAXbase slewing range type
11 - 24 3 302 709 en Operating manual
GMK5150L
12.01.2018

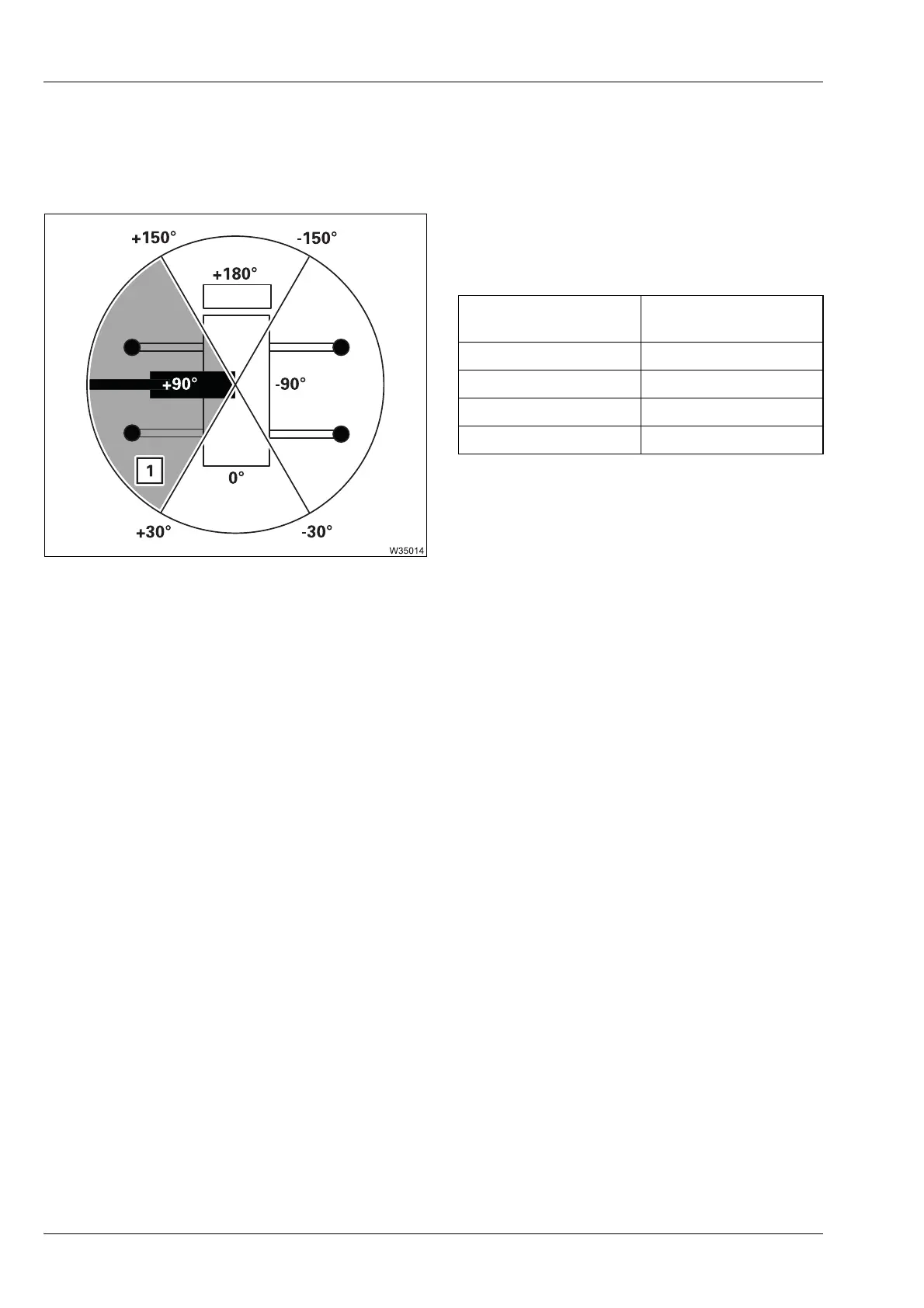

11.3.1 Specifications in the lifting capacity tables
The specified lifting capacities are only enabled for specific slewing ranges.
The
Lifting capacity table contains a direction
specification for the enabled slewing range,
which is assigned to a superstructure position.
This superstructure position is the starting
point for the enabled slewing range. A com-
plete turn is always divided in four slewing
ranges. The size of the slewing range is
defined via an angular region around the start-
ing point, e.g. ±60° for the slewing range (1).
This results in the enabled slewing range (1)
between the slewing angles of +30° to +150°.
The size of the enabled slewing range depends on the rigged outrigger
span. The smallest respective individual width of an outrigger beam
is taken into account.
Positional reference
Superstructure
position
Backwards 0°
To the right -90°
Forwards +180°
To the left +90°
