Manitowoc GROVE GMK5150L

Operating elements for driving
3.1 Overview of the operating elements
Operating manual 3 302 709 en 3 - 23
GMK5150L
12.01.2018

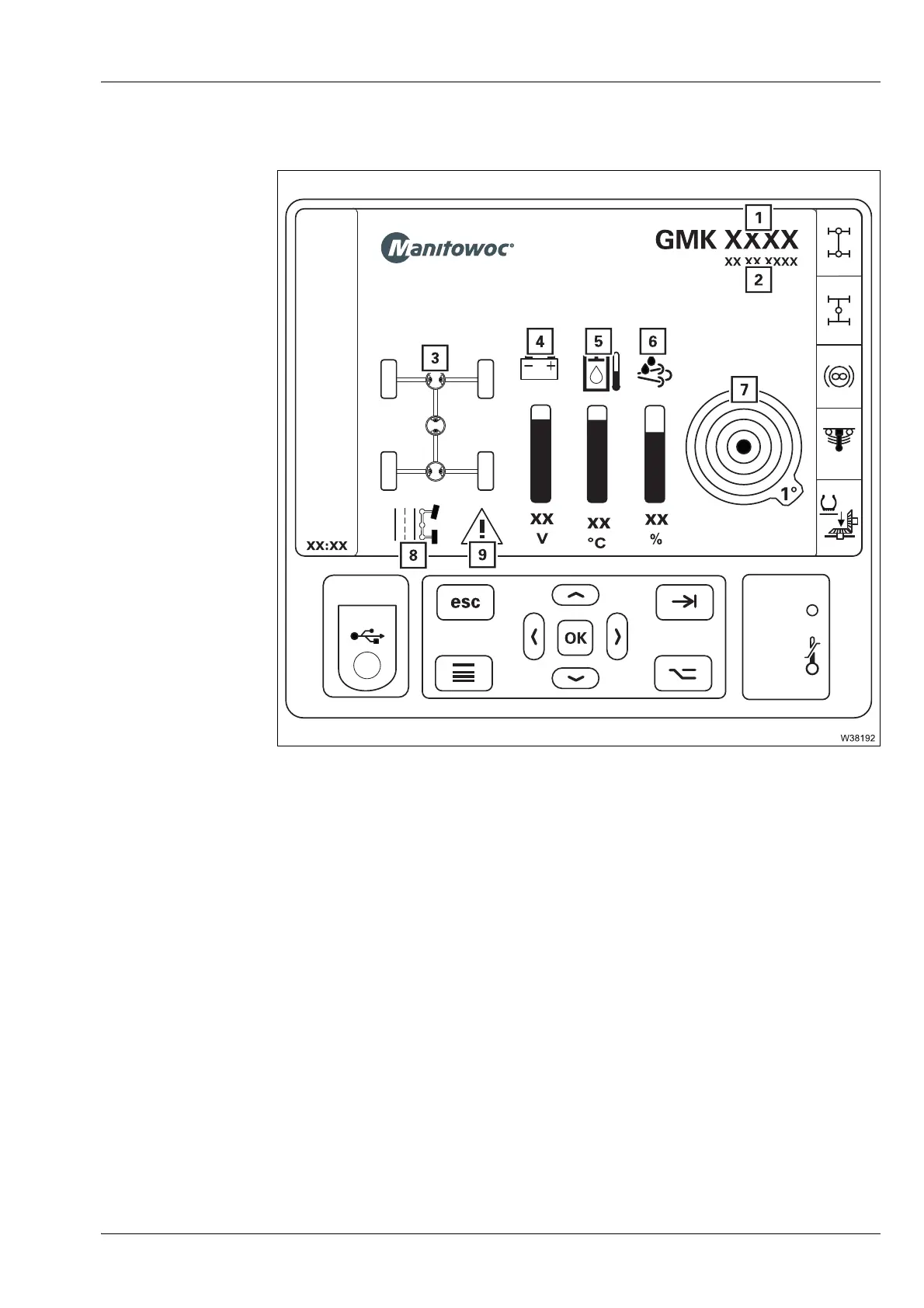

3.1.11 CCS – Start menu
1 Display of crane type
2 Serial number display
3 Display of transverse and longitudinal differential
locks on/off
à p. 3 - 28
4 Voltage monitoring display
à p. 4 - 15
5 Hydraulic oil temperature display
à p. 4 - 15
6 AdBlue level display
à p. 4 - 15
7 Display of current inclination
à p. 3 - 69
8 Steering mode display
à p. 3 - 62
9 Steering system malfunction/warning
à p. 3 - 62
