Manitowoc GROVE GMK5150L User Manual

Operating elements for driving
3.1 Overview of the operating elements
3 - 28 3 302 709 en Operating manual
GMK5150L
12.01.2018

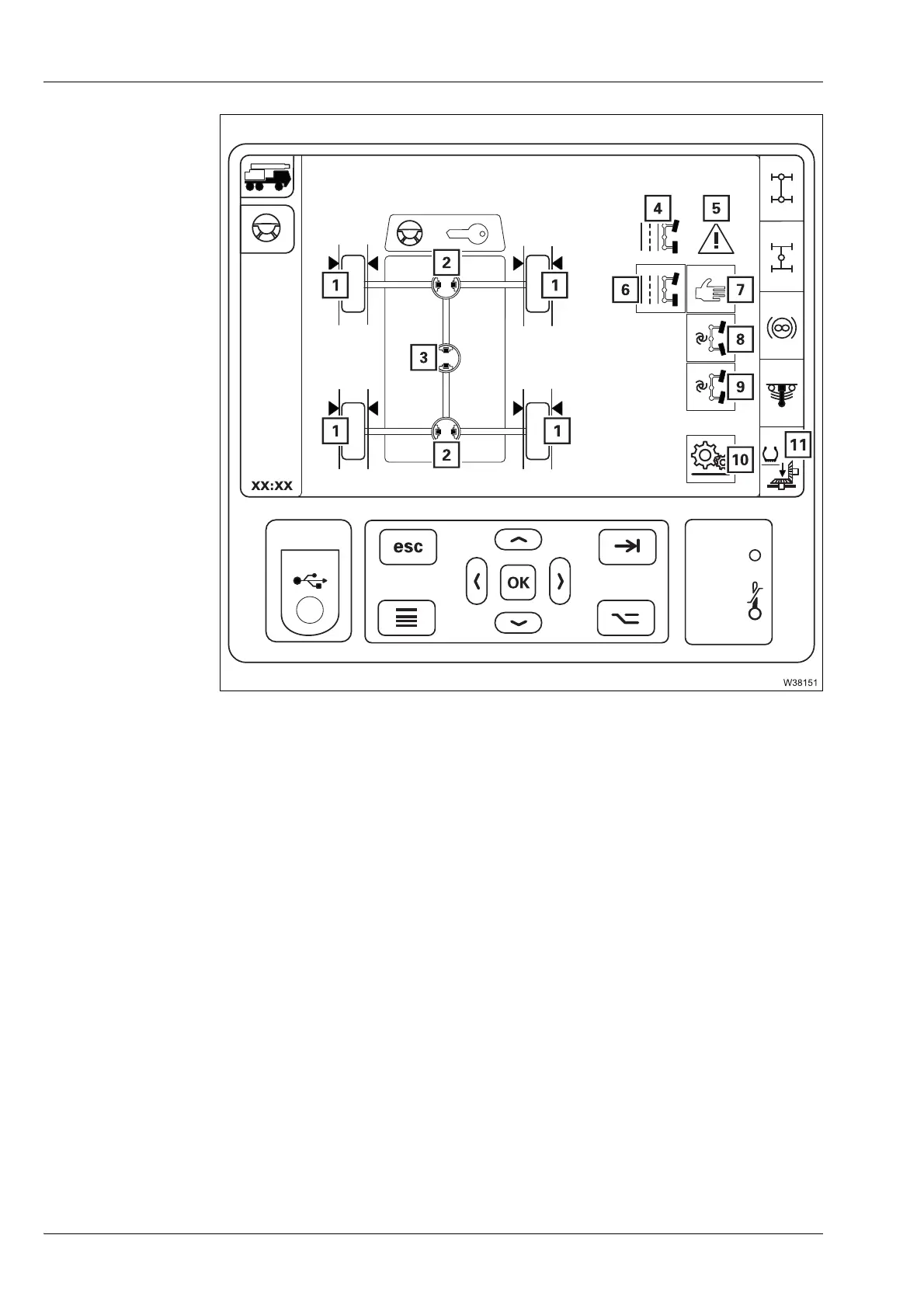

Driving menu
1 Current wheel position display
à p. 3 - 63
2 – Transverse differential locks display
– Transverse differential locks on/off
à p. 3 - 57
à p. 3 - 57
3 – Longitudinal differential lock display
– Longitudinal differential lock on/off
à p. 3 - 57
à p. 3 - 57
4 Steering mode display
à p. 3 - 62
5 Steering system malfunction/warning
à p. 3 - 62
6 Normal steering mode, on-road driving, on/off
à p. 3 - 62
7 Manual separate steering on/off
à p. 3 - 63
8 Separate steering for driving around corners on/off
à p. 3 - 62
9 Separate steering crab travel mode on/off
à p. 3 - 63
10 Transfer case for off-road gear on/off
à p. 3 - 55
11 Transfer case display
à p. 3 - 55
