Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 709 en 3 - 63
GMK5150L
12.01.2018
Separate steering crab travel mode on/off
Manual separate steering on/off
When separate steering is switched on, the speed is limited.

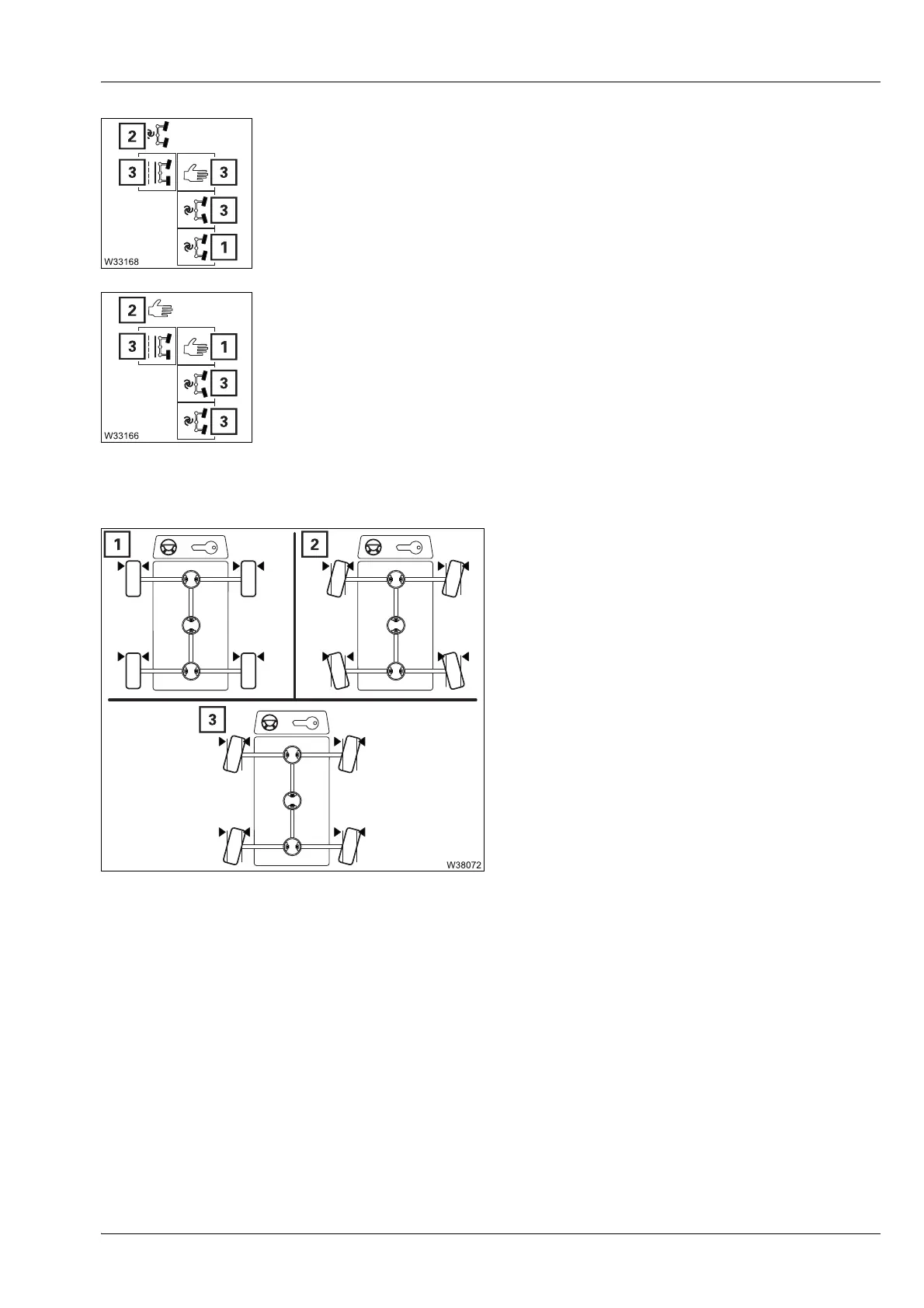

Current wheel position display
The current status is shown using different
symbols:
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – Symbol (3)
à p. 5 - 60
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – Symbol (3)
à p. 5 - 60
1 Straight ahead
2 Driving around corners
3 Crab travel mode
