Driving modes and rigging for on-road driving
6.5 Rigging the auxiliary hoist
6 - 46 3 302 709 en Operating manual
GMK5150L
12.01.2018
6.5.8 Transporting the auxiliary hoist
•
For transportation, be sure to use a separate vehicle with sufficient load
bearing capacity. Transport dimensions and weight;
à p. 1 - 21.
• Load the separate vehicle in such a way that the weight is evenly
distributed.
• Load the auxiliary hoist in such a way that no motorists and cyclists are
put at risk.

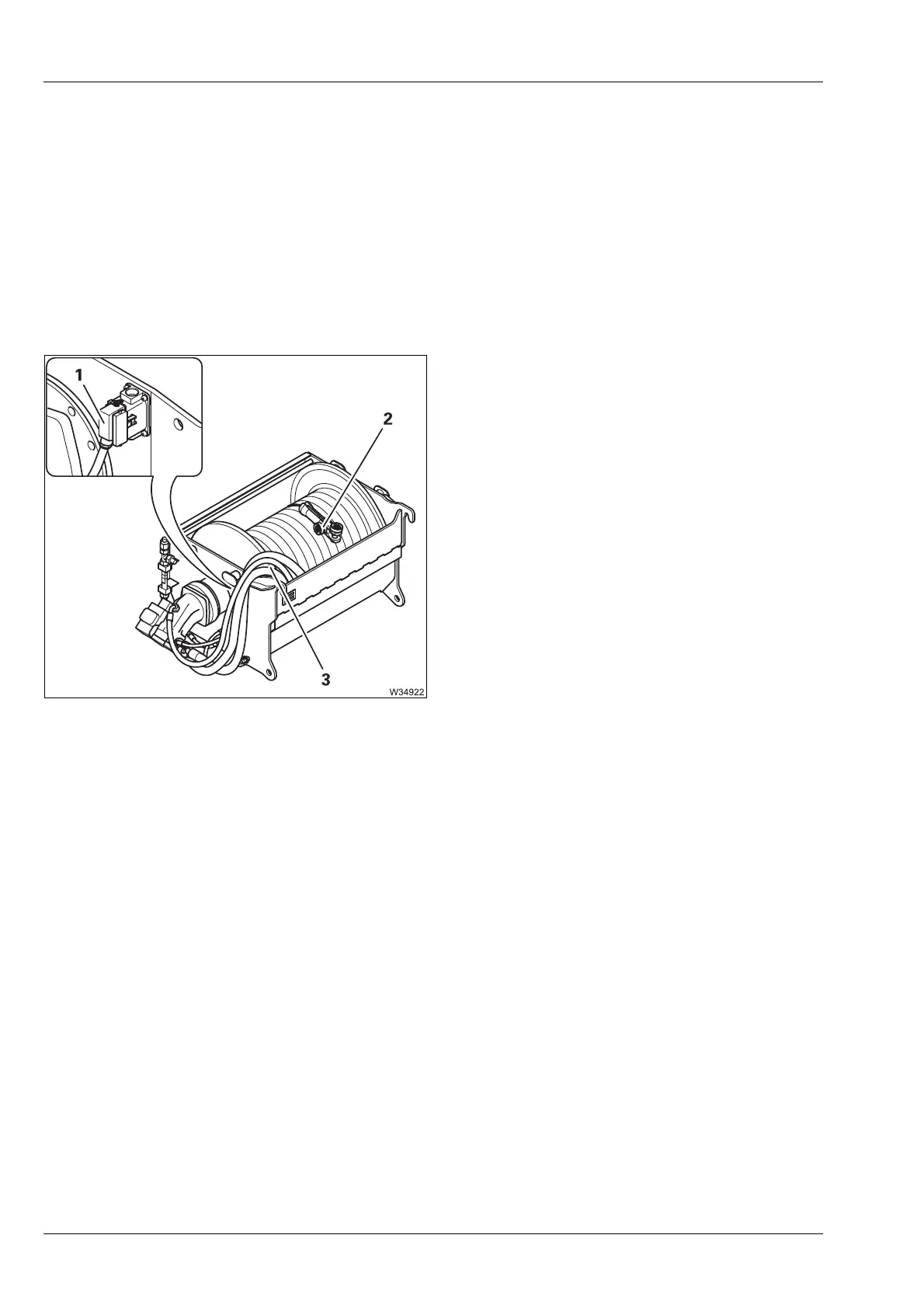

• Lift the auxiliary hoist onto the separate
vehicle and remove the lifting gear.
• Check that the plug (1) is inserted into the
dummy socket.
• Lay the hoses and cables (3) aside so they
will be become kinked.
• If necessary remove the rope end fitting (2).
