Transport
7.1 Transport with transport vehicle
7 - 2 3 302 709 en Operating manual
GMK5150L
12.01.2018
7.1.1 CHECKLIST: Checks before transport
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!

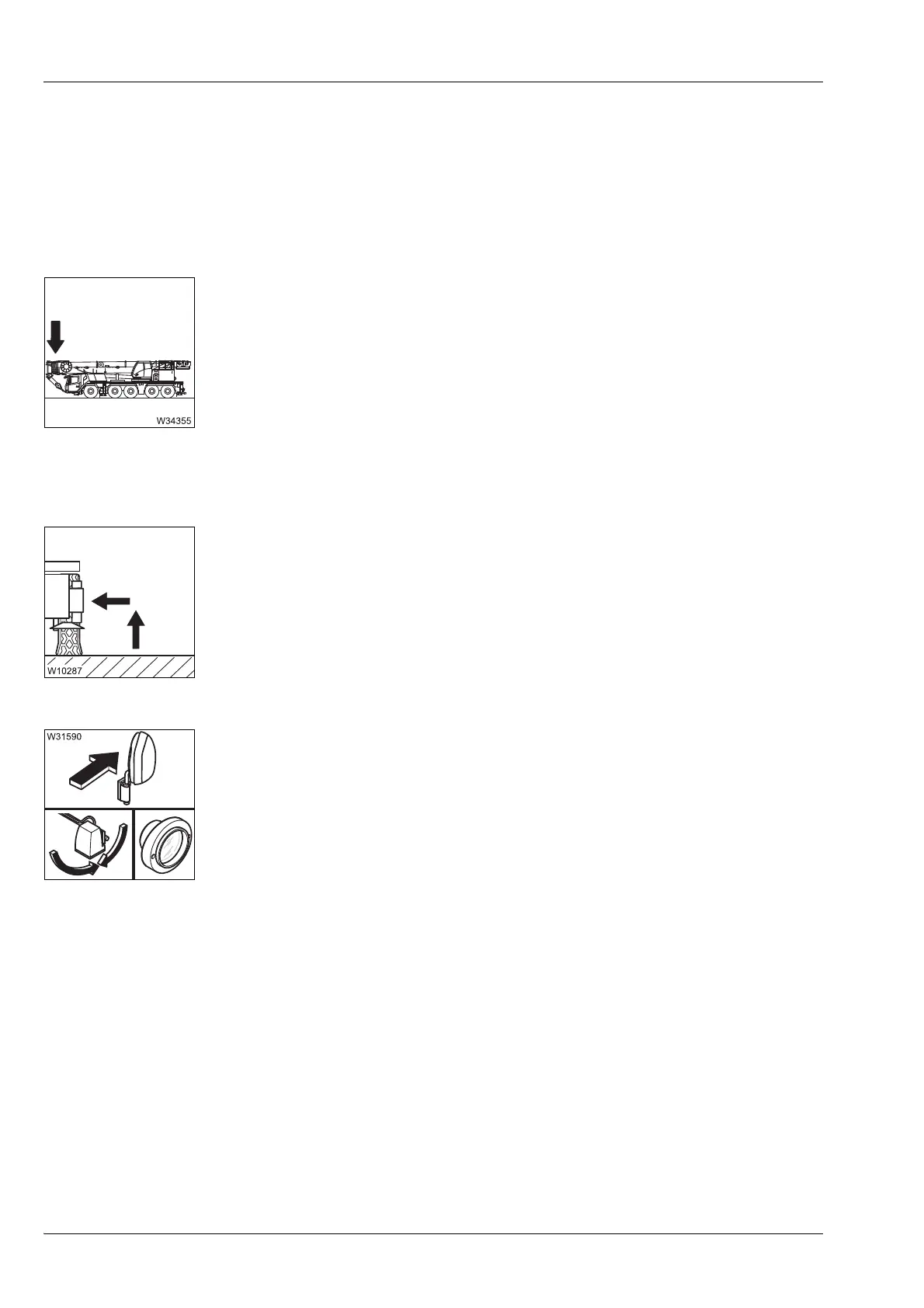

1. For on-road driving without a dolly
– All telescopic sections are interlocked; the telescoping cylinder is
locked with telescopic section
I.
– The boom must be resting in the boom rest.
– The slewing gear is switched off;
à p. 11 - 120.
– The superstructure is locked;
à p. 11 - 15.
– Depending on the driving mode, the counterweight must be
unrigged;
à p. 6 - 1, à p. 12 - 71.
2. On the outriggers
– All outrigger beams must be fully retracted and secured to prevent
extension;
à p. 12 - 46.
– The outrigger pads are in the driving position;
à p. 12 - 53.
3. All mirrors for crane operation are folded in/removed;
à p. 12 - 150.
All spotlights are switched off and swivelled (if possible) in such a way
that no other drivers will be blinded by reflection;
à p. 11 - 130.
The lighting on the outrigger must be switched off;
à p. 12 - 45.
