Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 709 en 3 - 57
GMK5150L
12.01.2018
3.2.12 Final drive
à Longitudinal and transverse differential locks, p. 5 - 51

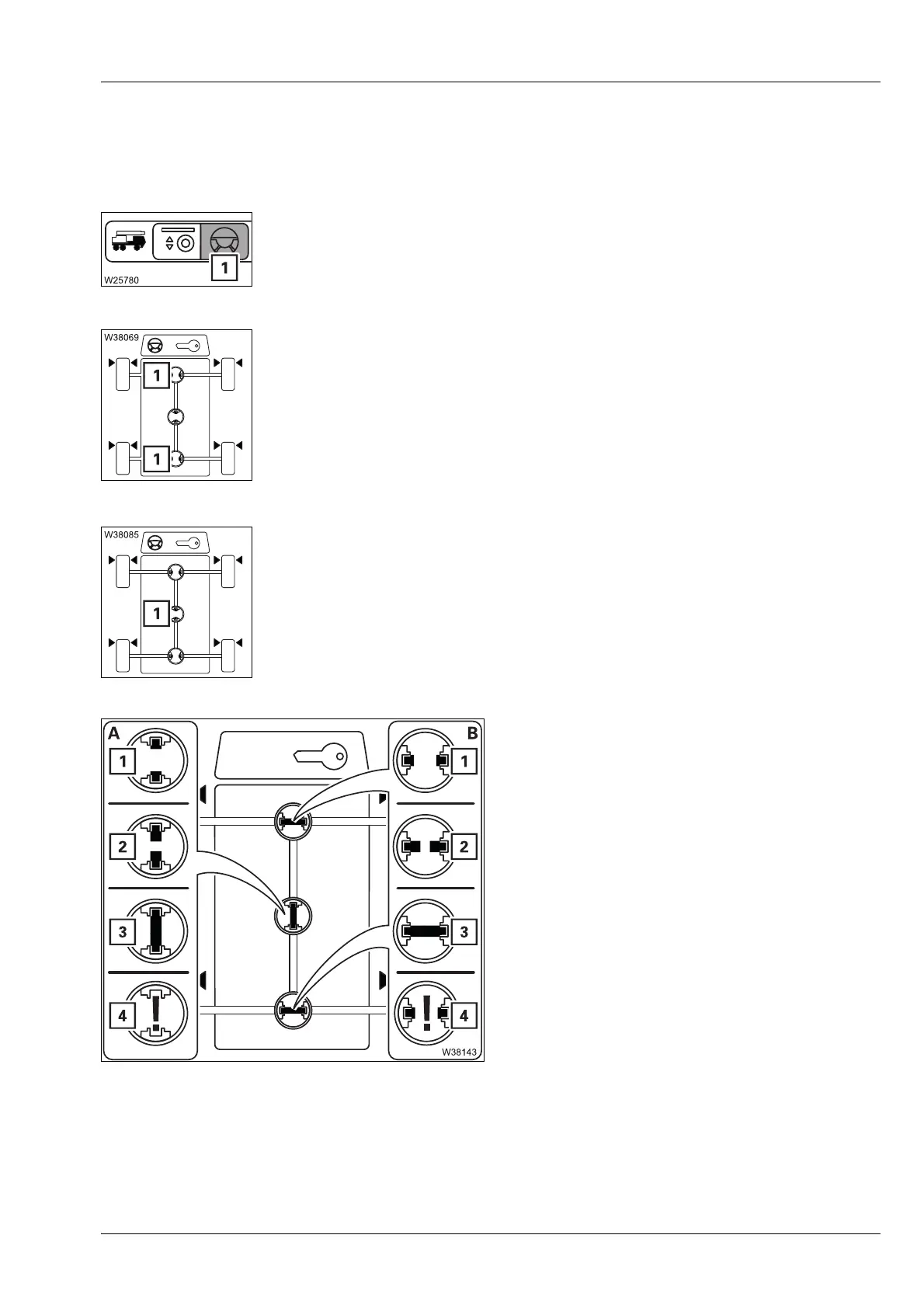

Driving menu
Transverse differential locks on/off
When a symbol (1) is selected all transverse differential locks are switched
on or off.
Longitudinal differential lock on/off
For drive 10 x 8 x 10 – simultaneously drive of first axle line on/out
(A) – longitudinal differential lock display
(B) – transverse differential lock display
The current status is shown using different
symbols.
Opening: Select symbol (1) and confirm – menu is opened
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is green
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is green
1 Green – locks off
2Red – locks on
3 Yellow – intermediate position
4 Violet – error
à p. 5 - 51
