Rigging work
12.6 Slewing range – only with the Standard slewing range type
12 - 32 3 302 709 en Operating manual
GMK5150L
12.01.2018

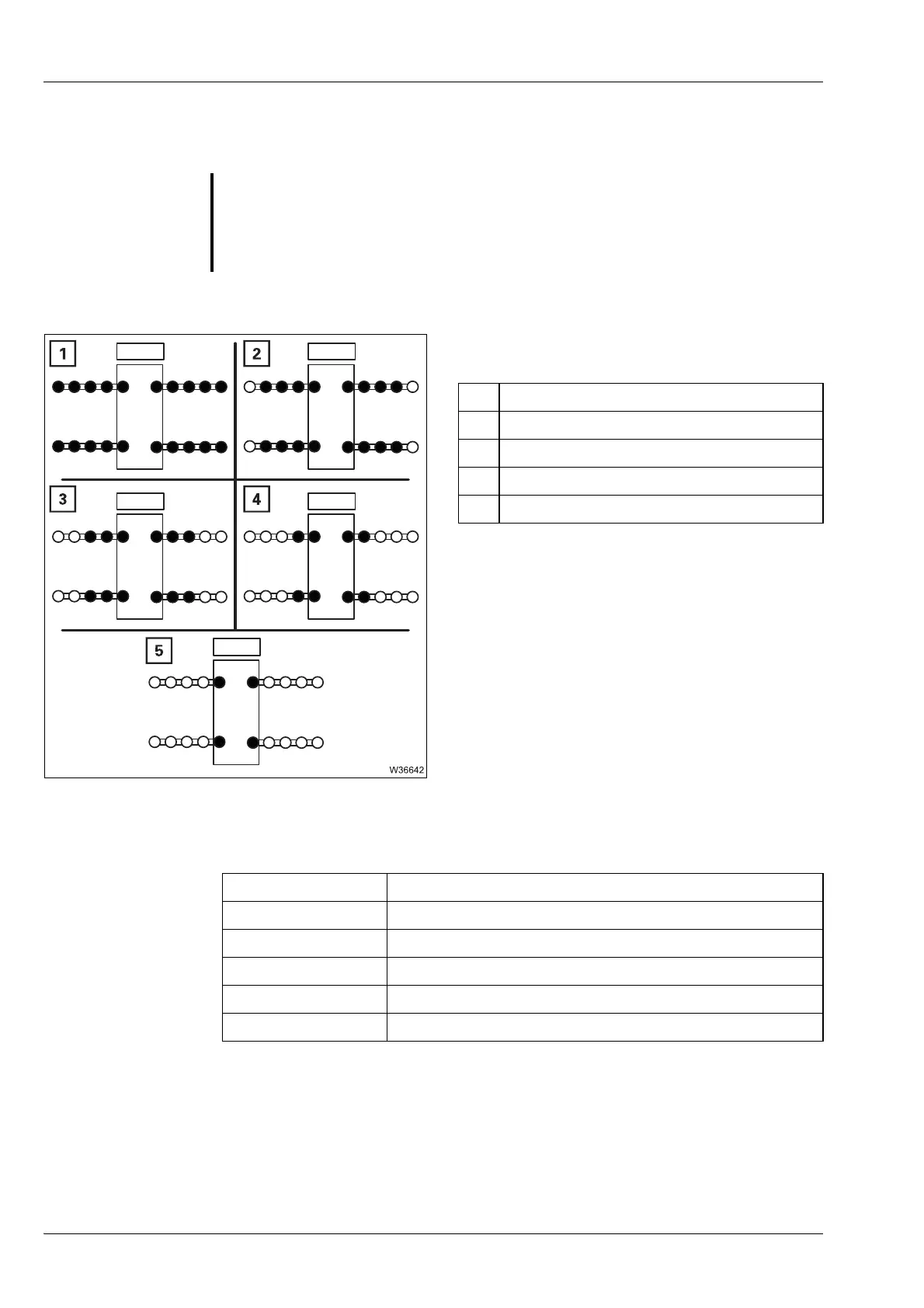

12.6.2 Enabled outrigger spans
The tables show the values for permissible
outrigger spans with overall widths (1) to (5).
In addition, there is a lifting capacity table for
the
Free on wheels working position.
The cover pages of the individual lifting capacity tables provide a brief
overview in per cent.
G
Risk of overturning when slewing the superstructure
With some outrigger spans, slewing is only permissible with certain
counterweight combinations and boom positions;
à Slewing with rigged
counterweight
, p. 12 - 113.
1 7.600 m (24.9 ft)
2 6.700 m (22.0 ft)
3 5.900 m (19.4 ft)
4 5.100 m (16.7 ft)
5 2.500 m (8.2 ft)
Outrigger width Per cent
1 100%
2 83%
3 66%
4 50%
5 0%
