Operating elements for driving
3.2 Short description of the operating elements
3 - 64 3 302 709 en Operating manual
GMK5150L
12.01.2018

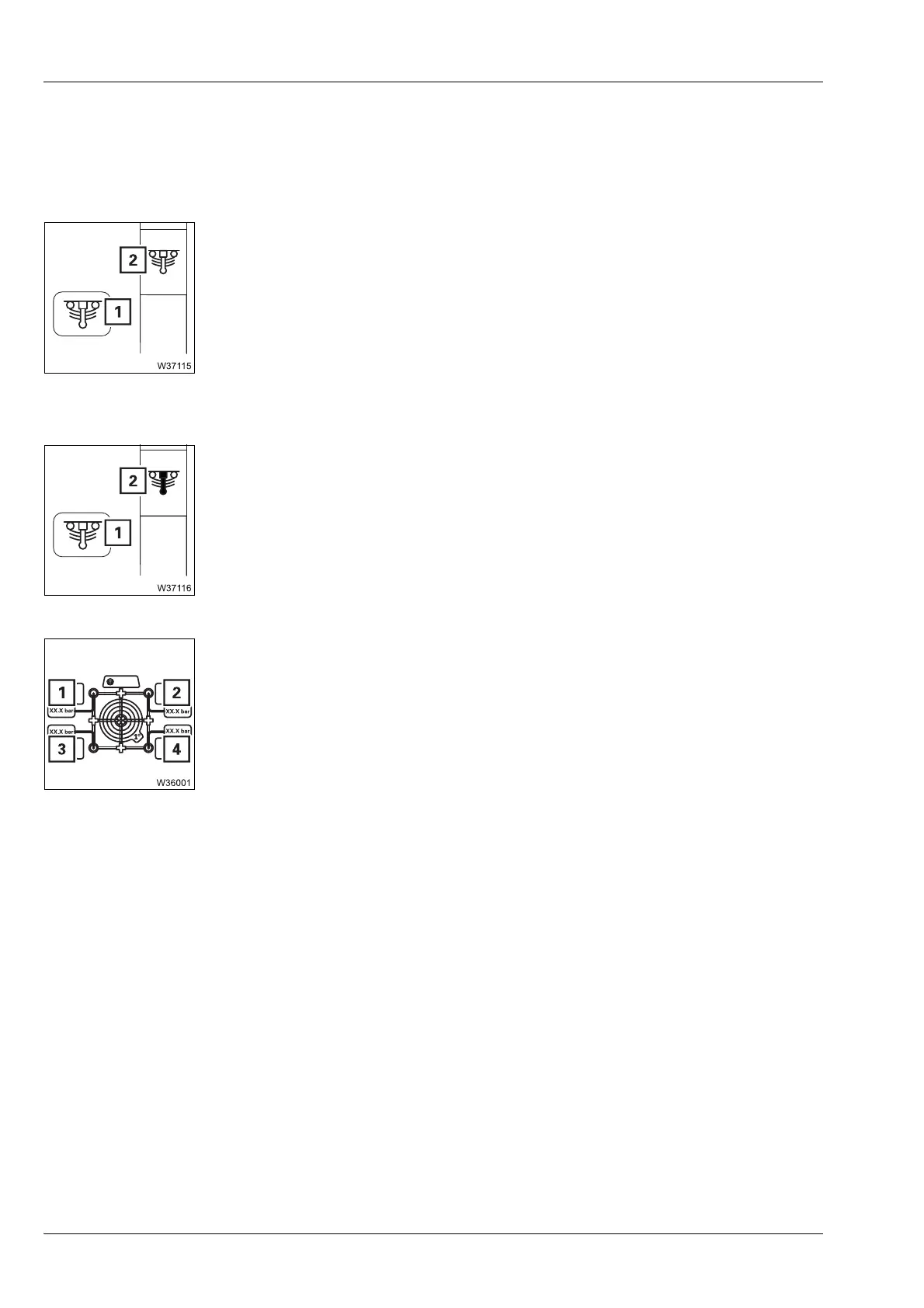

3.2.15 Suspension
CCS display
Suspension display
Suspension on/off
Suspension operation pressure gauge
– To switch on: Select symbol (1) and confirm – Symbol (2) green
(on-road driving)
Suspension on – enabled for on-road driving
– Switch off Select symbol (1) and confirm – Symbol (2) red
Suspension off – blocked for crane operation
à p. 5 - 16
1 Suspension pressure, 1st and 2nd axle lines, left-hand side
2 Suspension pressure, 1st and 2nd axle lines, right-hand side
3 Suspension pressure, 3rd and 5th axle lines, left-hand side
4 Suspension pressure, 3rd and 5th axle lines, right-hand side
