Driving with a rigged truck crane
13.5 Driving from the crane cab
13 - 28 3 302 709 en Operating manual
GMK5150L
12.01.2018
13.5.4 Operating the transmission

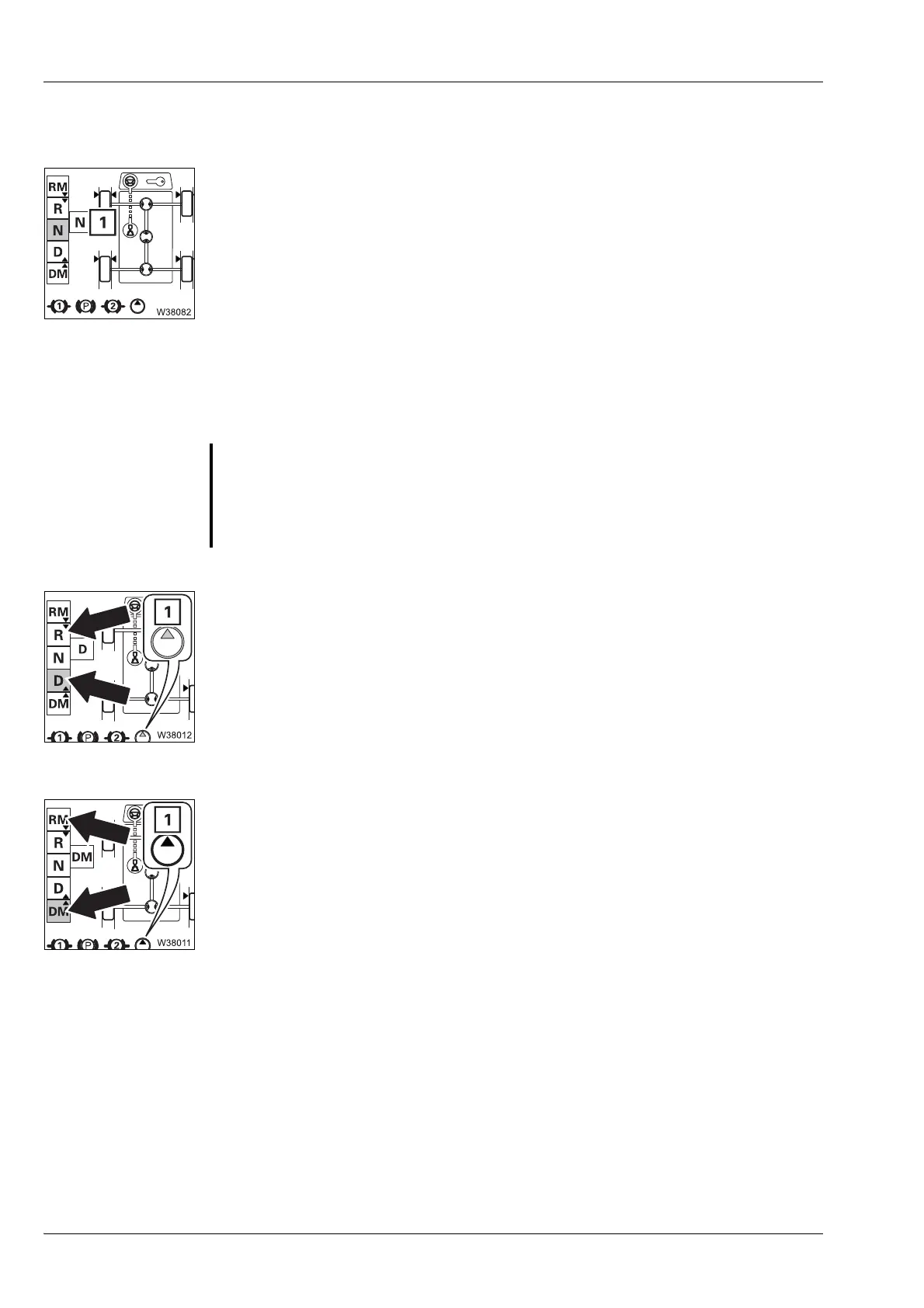

When the Driving operating mode is switched on, the transmission is in
neutral position – letter N (1) white.
Selecting the
transmission
mode
You can select transmission modes with crane functions and transmission
modes without crane functions.
Transmission modes without crane functions
• Switch to transmission mode D or R.
– The crane's hydraulic system
Driving mode is switched off – symbol (1) is
grey.
– The transmission shifts.
– The speed is limited to about 20 km/h (12 mph).
Transmission modes with crane functions
• Switch to transmission mode DM or RM.
– The crane's hydraulic system
Driving mode is switched on – symbol (1)
orange.
– The transmission shifts only into the 1st gear (reverse or forwards).
– The speed is limited to about 5 km/h (3 mph).
In these transmission modes you can start moving more slowly than in the
transmission modes D or R. These transmission modes are intended for
manoeuvring mode and for driving with a load.
H
The crane functions are also available in the neutral position N.
G
Risk of accidents when driving with a lifted load
Secure the load when driving so that it cannot swing and use the transmis-
sion mode DM or RM so that the transmission does not shift.
In this way you can prevent the swinging load leaving the permissible
working range and the truck crane overturning.
