Malfunctions during crane operation
14.5 Emergency operations and programs
Operating manual 3 302 709 en 14 - 41
GMK5150L
12.01.2018
14.5.3 Entering the current telescoping
CCS no longer displays the current telescoping
– if you telescoped in emergency mode, or
– if the power supply was interrupted in the course of saving data.
In these cases, you must enter the current telescoping, e.g. the values from
the RCL display.

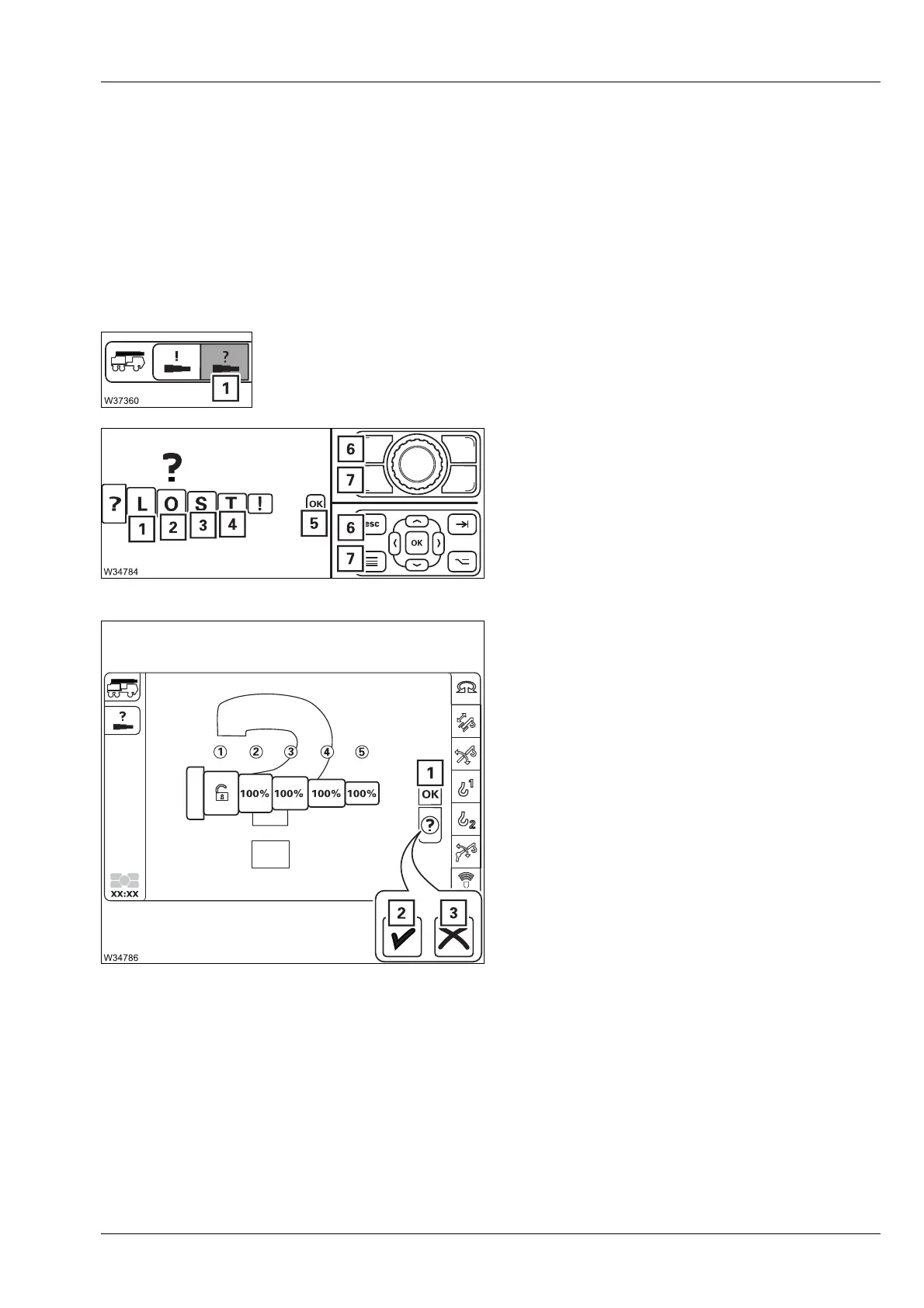

• Select and confirm the symbol (1) – the Unknown telescoping menu is
opened.
• Select and confirm the symbols (1) to (4).
• Confirm the entry with the symbol (5).
You can cancel the entry at any time using
the (6) or (7) buttons.
After the correct input, the area for the set
value input will be opened.
Entering target values
• Select and confirm the symbols 1 to 5.
• Enter the desired target values for all
telescopic sections, for example,
Unlocked,
100%, 100%, 100%, 100%.
• Confirm the entry with the symbol (1).
Display symbol:
s
2 Permissible value
3 Impermissible value
