Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 24 3 302 709 en Operating manual
GMK5150L
12.01.2018

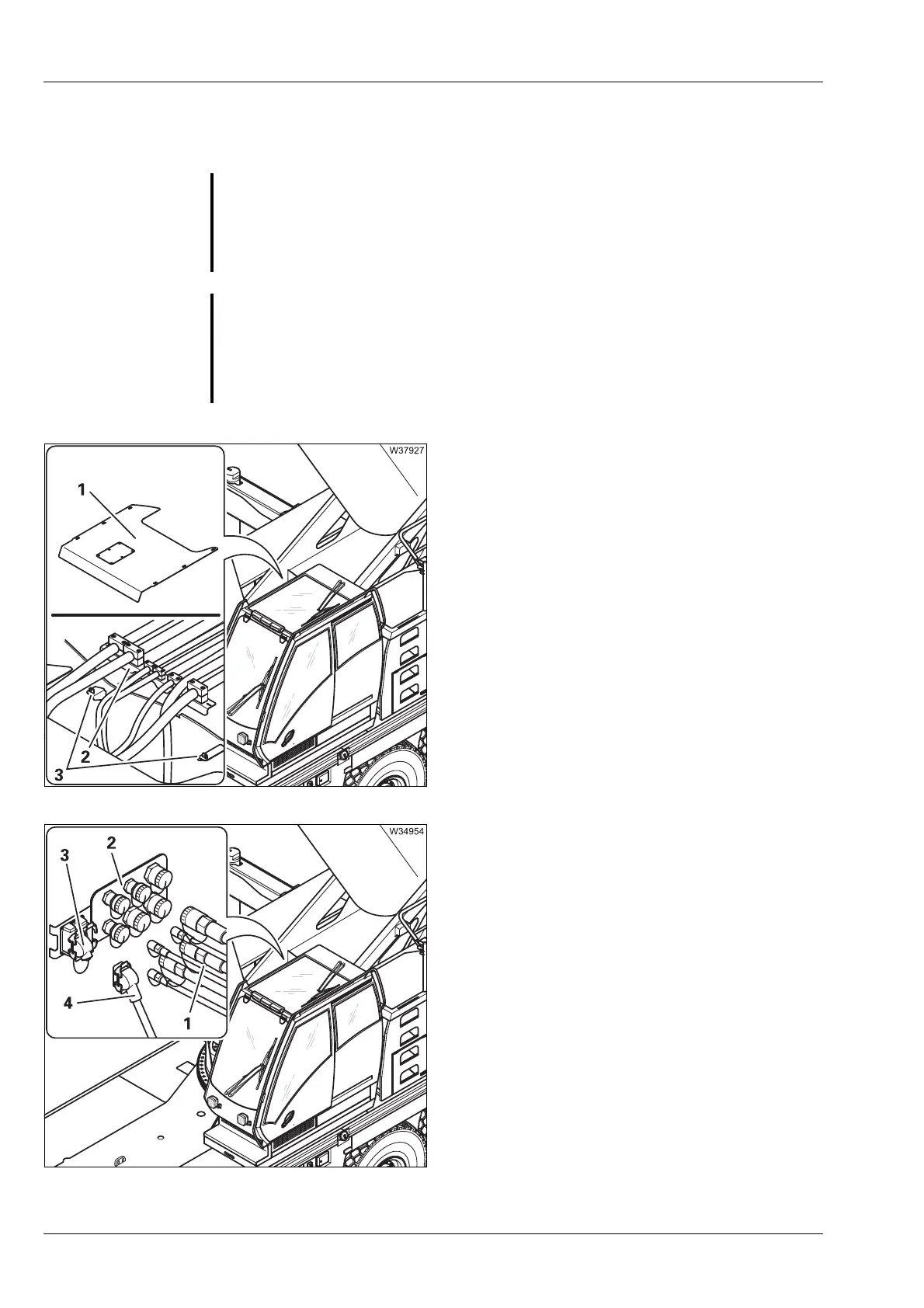

6.4.3 Disconnecting/connecting hydraulics/electrical
Breaking
• Remove the plate (1).
• Remove the clamp (2).
• Fasten the linch pin on the pin (3).
• Remove the hoses (1) from the connec-
tions (2).
• Withdraw the plug (4) from the socket.
• Insert the bridging plug (3).
• Close all hoses, connections, plugs and
sockets.
• If necessary, secure all the hoses/cables
so that they do not swing loose when the
main boom is raised.
S
Risk of malfunction in the superstructure electronics!
Always turn off the ignition in the crane cab before you establish or sepa-
rate the electrical connection. This prevents malfunctions in the electronics
and corresponding error messages in the subsequent crane operation.
G
Danger of hands and arms being crushed.
Make sure that the boom pivot pin is pushed in before making or breaking
the connections.
By this means you avoid a swinging main boom crushing your arms or
hands on the turntable.
