Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating manual 3 302 709 en 6 - 25
GMK5150L
12.01.2018

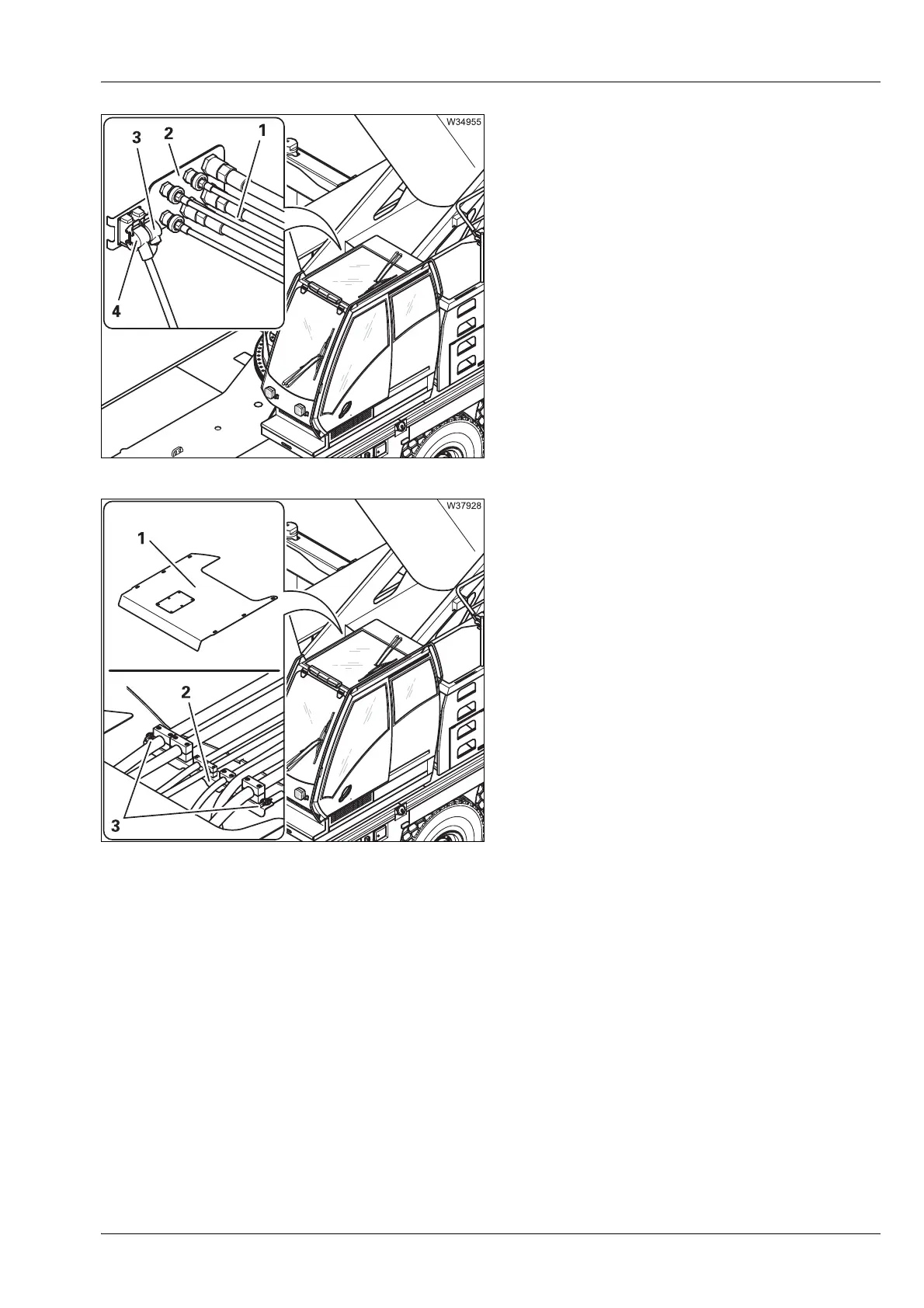

Establish
• Remove the bridging plug (3).
• Connect the plug (4) to the socket.
• Connect all hoses (1) to the connections (2).
The assignment is given by the size and col-
our designations.
• Lay the hoses/cables so that they will not be
damaged.
• Insert the clamp (2) onto the pins (3).
• Secure the clamp using the linch pins.
• Replace the plate (1).
