Manitowoc GROVE GMK5150L User Manual

Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 9 - 133
GMK5150L
9.2.22 Rated capacity limiter (RCL)

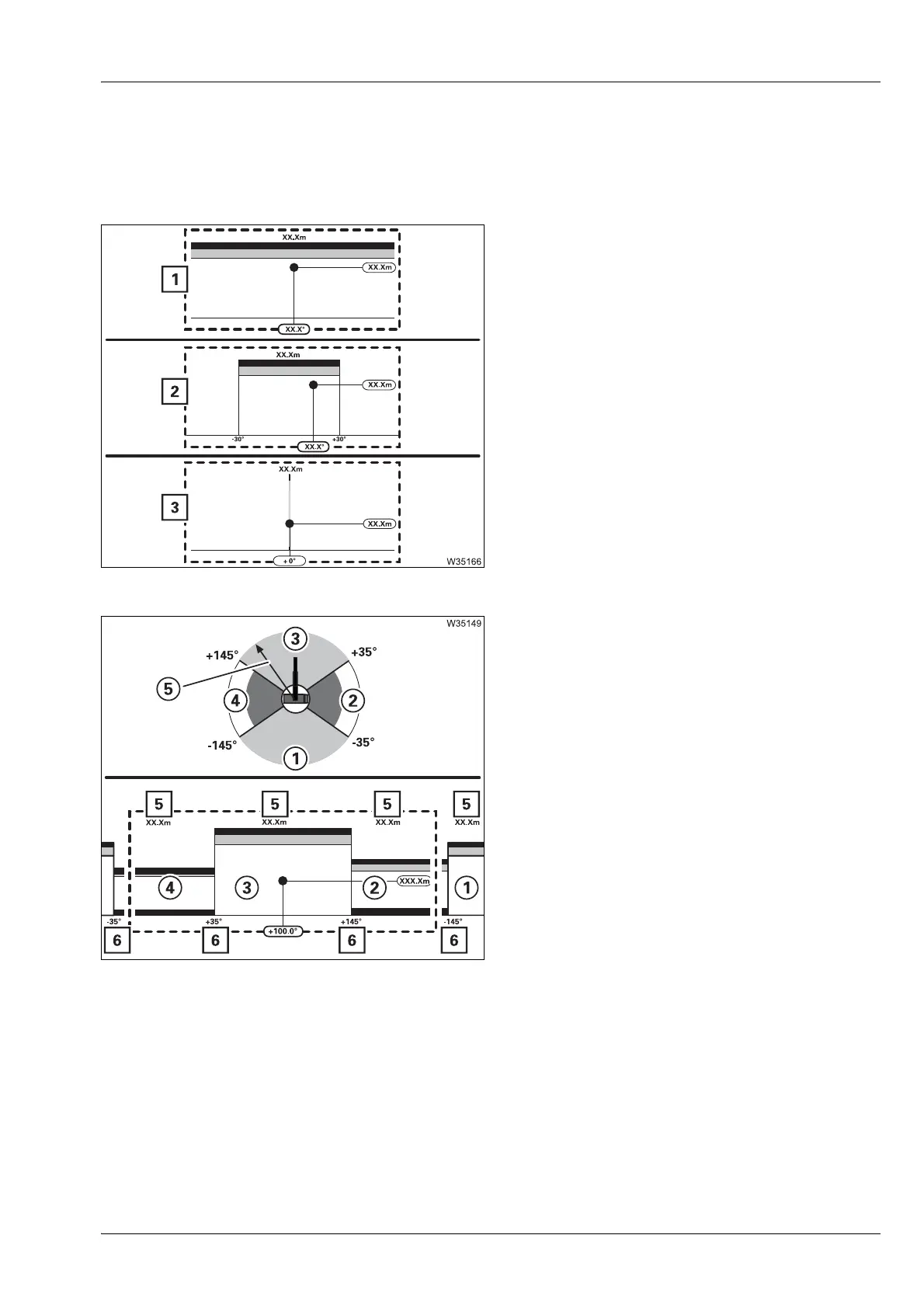

CCS display In the Start menu
For the
Standard slewing range type
Only one slewing range is displayed
The displays for working radius, current
slewing angle and current position are
identical to the displays for the
MAXbase
slewing range type.
For the
MAXbase slewing range type
– Display Slewing ranges/working radii
Represents the defined slewing ranges and
corresponding respective maximum
permissible operating radii
5
for the
confirmed rigging mode as a diagram.
– Display of current slewing range divisions
Shows the currently defined slewing
ranges
1
to
4
as pillars
1
to
4
. The pillar
width represents the angular range.
– Display of current slewing range limits
Shows the currently defined slewing range
limits (6) in degrees.
For example -35° / +35° / +145° / -145°.
s
1 360° slewing range
2 Restricted slewing range, e.g. ±30°
3 Working position, e.g. 0° to the rear
